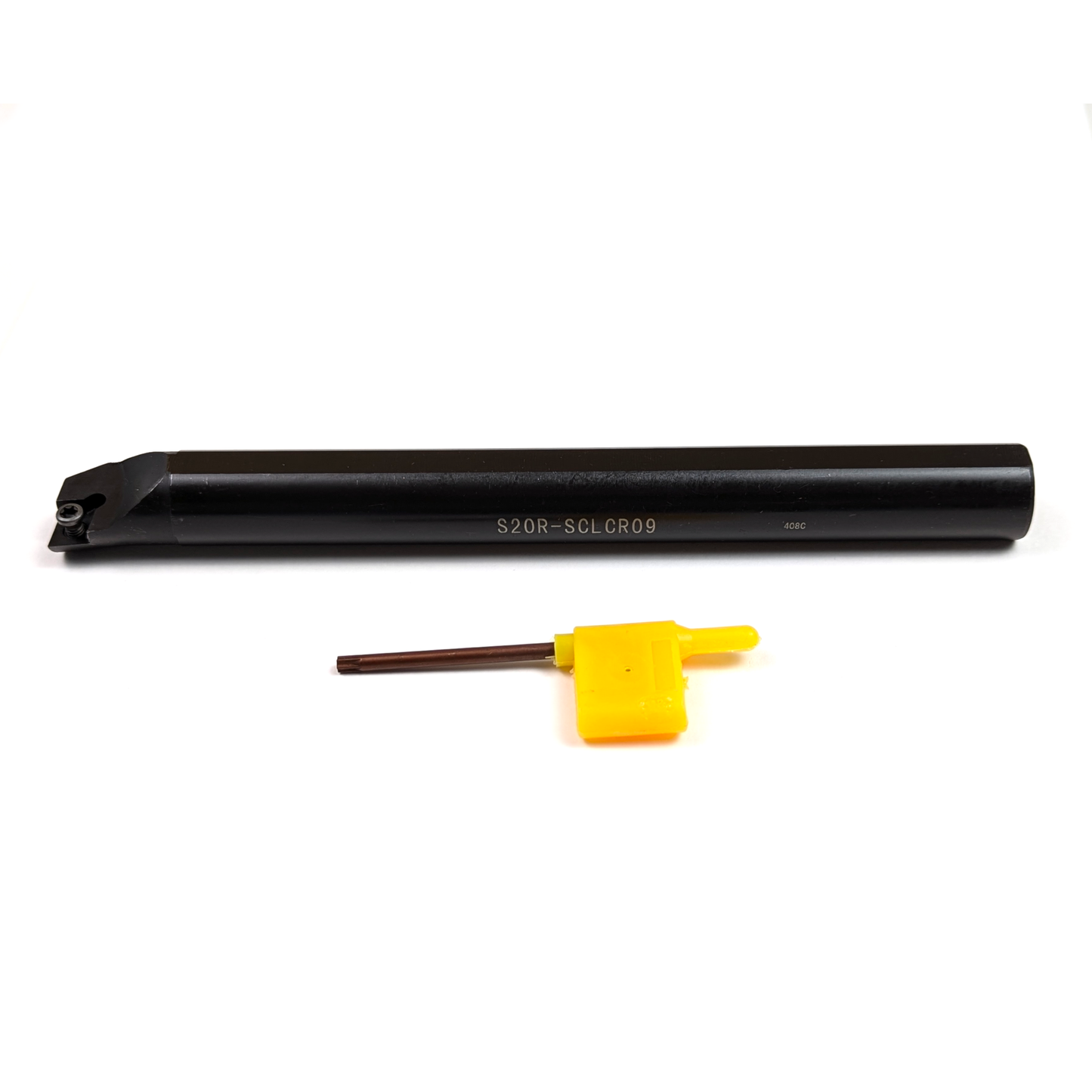

10mm-20mm SCLCR09 Boring Bar Lathe Insert Toolholder for CCMT09t304 Carbide Inserts

£8.99 GBP

Sale Sold out

PAPER INVOICE INCLUDED IN EVERY ORDER
60-DAY FREE RETURNS FOR RISK FREE SHOPPING
FREE ROYAL MAIL TRACKED 48 SHIPPING ON ALL ORDERS

Size 10mm Shank - S10K-SCLCR09 12mm Shank - S12M-SCLCR09 14mm Shank - S14N-SCLCR09 20mm Shank - S20R-SCLCR09

Quantity

These boring bar lathe tool holders are ideal for boring operations and can be used for turning and facing in a pinch, although will not be as rigid for turning operations as dedicated turning/facing toolholders like these. Compatible with any CCxT09 inserts, such as CCMT09T304, CCGT09T304, CCMT09T302, CCGT09T302, CCMT09T308, CCGT09T308

It's recommended to use the largest shank that will fit in your tool post while still reaching centre-line of your chuck, to maximize rigidity and minimize chatter.

Toolholder Dimensions:

S12M SCLCR09

Shank: 12mm
Length: 150mm
Minimum Bore Diameter: 15mm
Screw type: M4 x 8mm

S14N SCLCR09

Shank: 14mm
Length: 160mm
Minimum Bore Diameter: 16mm
Screw type: M4 x 8mm

S20R SCLCR09

Shank: 20mm
Length: 200mm
Minimum Bore Diameter: 23mm
Screw type: M4 x 8mm
