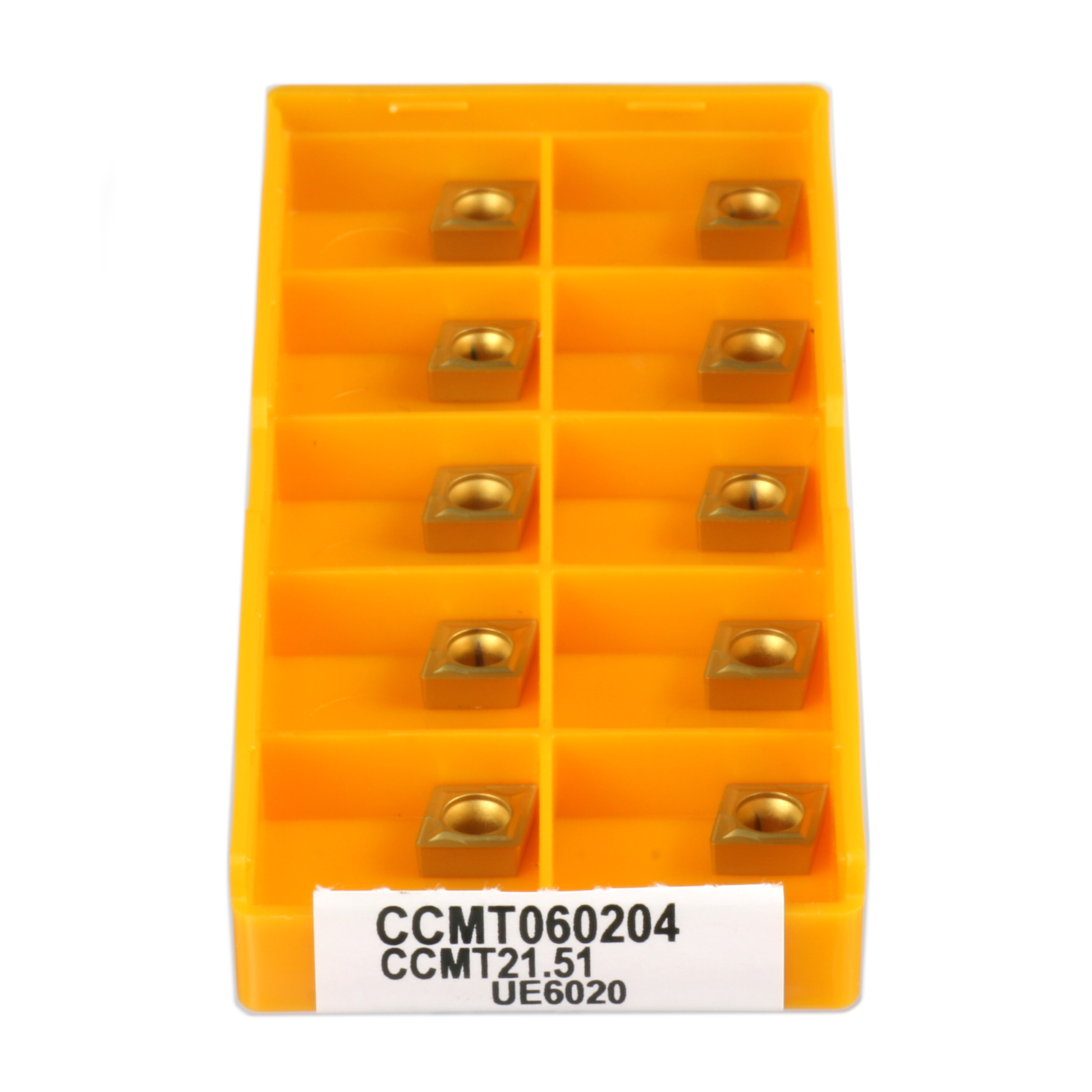

10pcs CCMT060204 UE6020 carbide insert lathe turning tips
10pcs CCMT060204 UE6020 carbide insert lathe turning tips
Regular price
£4.99 GBP
Regular price
Sale price
£4.99 GBP
Unit price
per
- PAPER INVOICE INCLUDED IN EVERY ORDER
- 180 DAY FREE RETURNS FOR RISK FREE SHOPPING
- FREE ROYAL MAIL TRACKED 48 SHIPPING ON ALL ORDERS OVER £5
Couldn't load pickup availability
The CCMT060204 insert features a 6.4mm cutting edge length, 2.38mm thickness, and 0.4mm corner radius. It has a diamond-shaped insert geometry with a 7-degree positive rake angle that provides efficient cutting action and minimizes cutting forces.
These carbide inserts are suitable for use with a wide range of materials, including steel, stainless steel, cast iron, and non-ferrous metals.
Spec table for CCMT060204 carbide inserts
| Specification | Value |
|---|---|
| ISO Code | CCMT060204 |
| Material | Carbide |
| Coating | UE6020 |
| Cutting edge length | 6.4 mm |
| Insert thickness | 2.38 mm |
| Corner radius | 0.4 mm |
| Insert Shape | 80 degree Diamond |
| Compatible Materials | Steel, stainless steel, cast iron, nonferrous metal |
| Rake Angle | 7 Degrees |

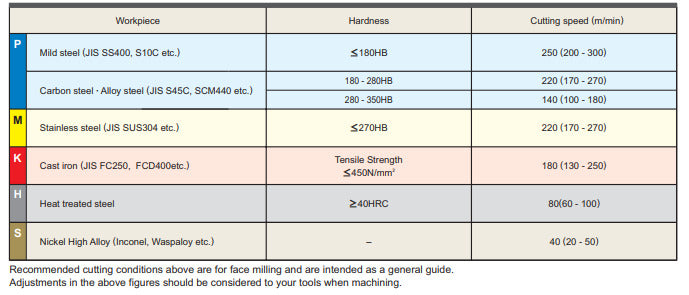

UE6020 - Carbon steel cutting + General purpose -- moderate speed
