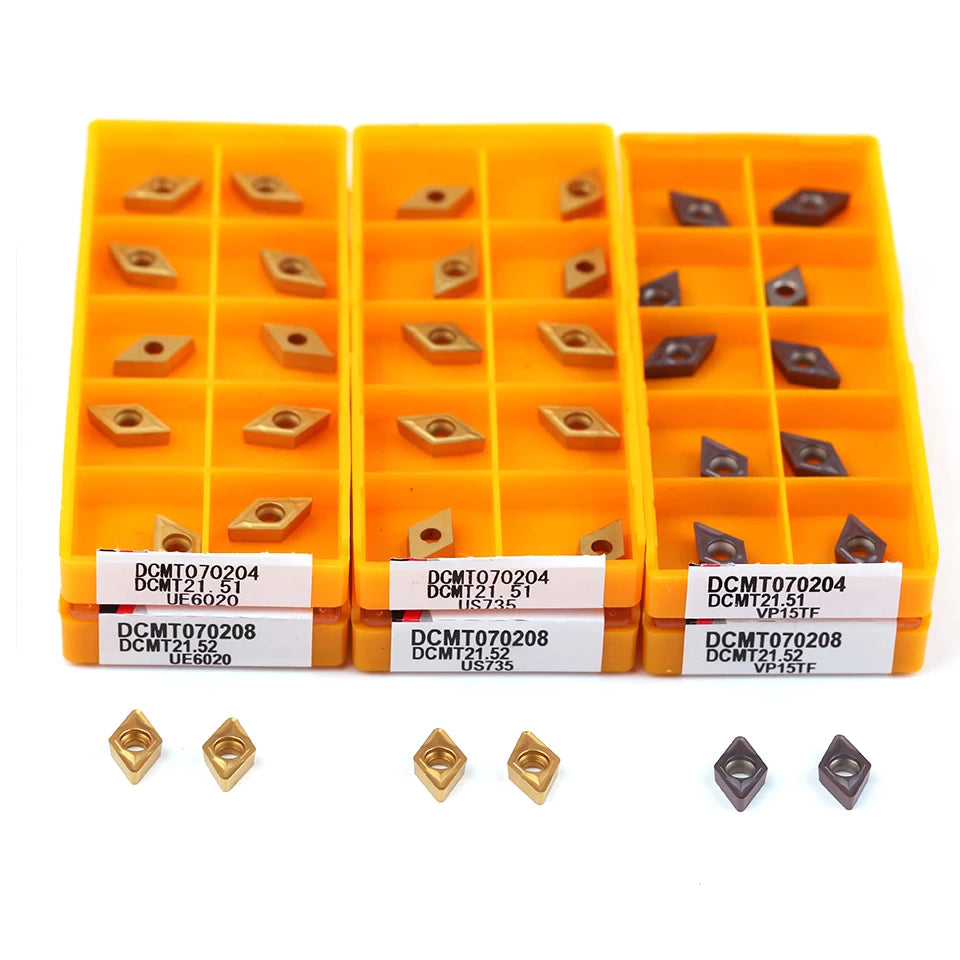

10pcs DCMT070204 US735/UE6020/VP15TF Carbide Lathe Inserts
10pcs DCMT070204 US735/UE6020/VP15TF Carbide Lathe Inserts
Regular price
£4.99 GBP
Regular price
Sale price
£4.99 GBP
Unit price
per
- PAPER INVOICE INCLUDED IN EVERY ORDER
- 180 DAY FREE RETURNS FOR RISK FREE SHOPPING
- FREE ROYAL MAIL TRACKED 48 SHIPPING ON ALL ORDERS OVER £5
Couldn't load pickup availability
| Specification | Value |
|---|---|
| ISO Code | DCMT070204 |
| Insert shape | 55 degree Rhombic |
| Rake Angle | 7 Degrees (positive) |
| Cutting edge length | 7.752 mm |
| Insert thickness | 2.38 mm |
| Corner radius | 0.4 mm |
| Insert material | Carbide |
| Coating | VP15TF/UE6020/US735 |
These DCMT070204 carbide inserts that are perfect for turning, facing, and chamfering a variety of materials, including steel, cast iron, and non-ferrous metals.
With a thickness of 2.38 mm and a corner radius of 0.4 mm, these inserts are versatile and can be used for a wide range of cutting applications. The 7-degree relief angle and 55-degree included angle provide a clean and precise cut.
Coatings:

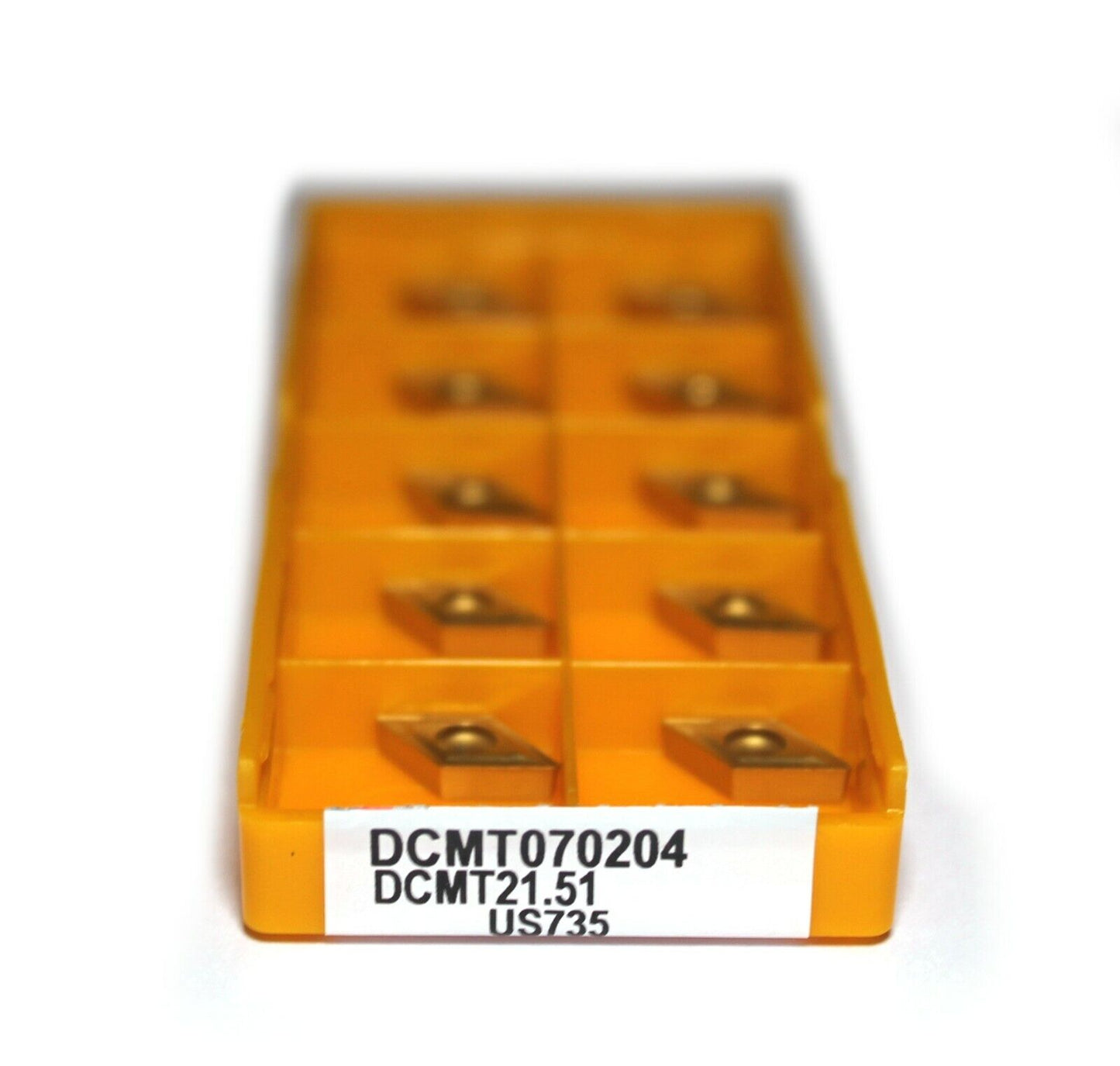

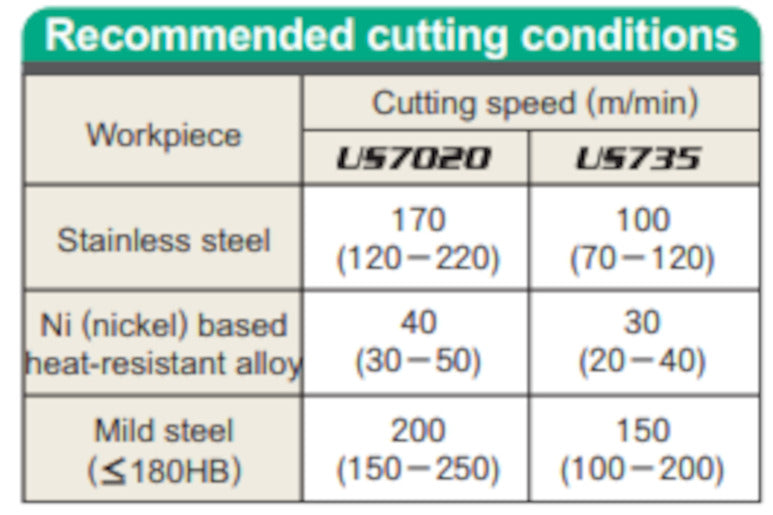

US735 - Stainless steel cutting + general purpose - moderate speed

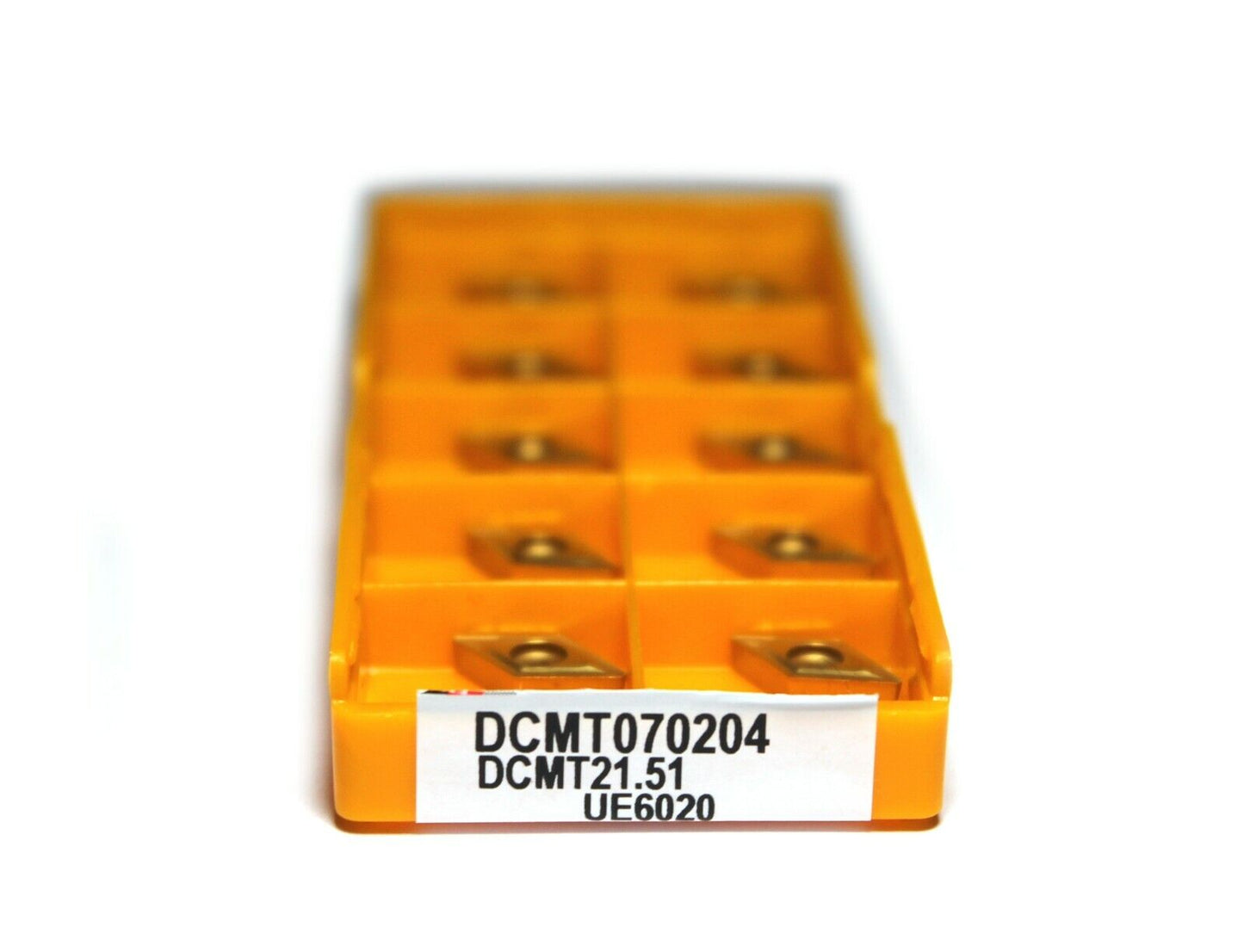

UE6020 - Carbon steel cutting + General purpose - moderate speed

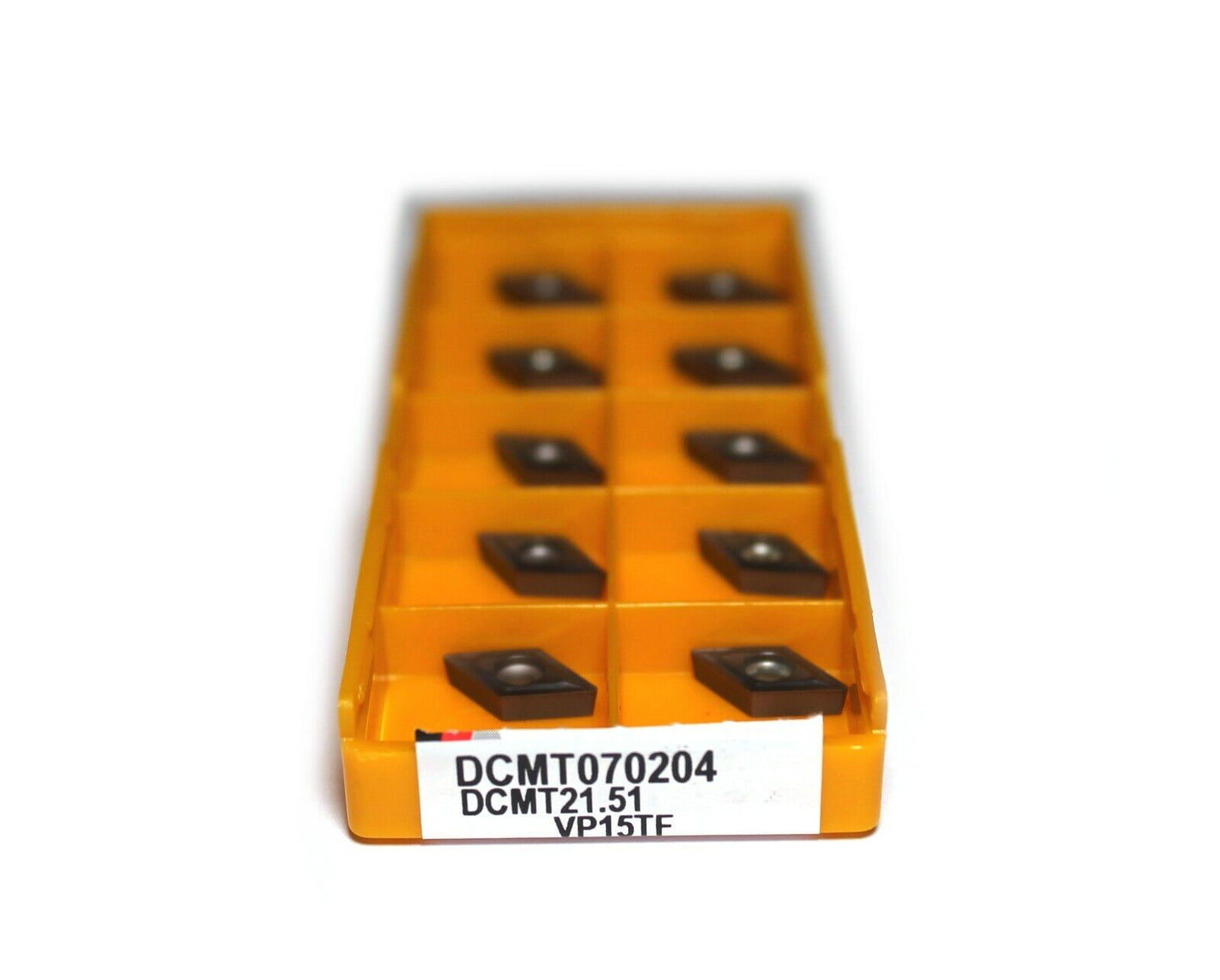

VP15TF - General Purpose + Long Lifespan - moderate speed
