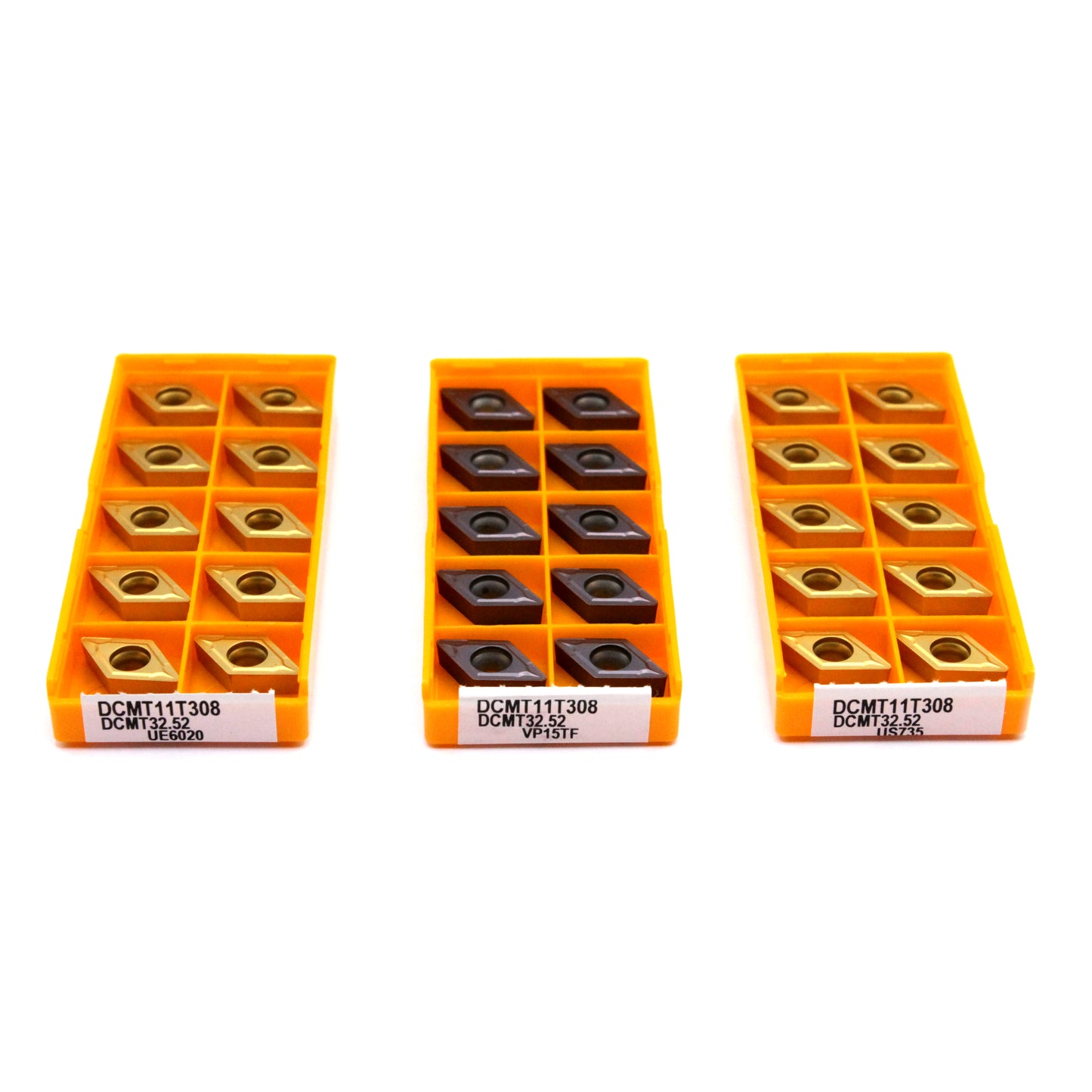

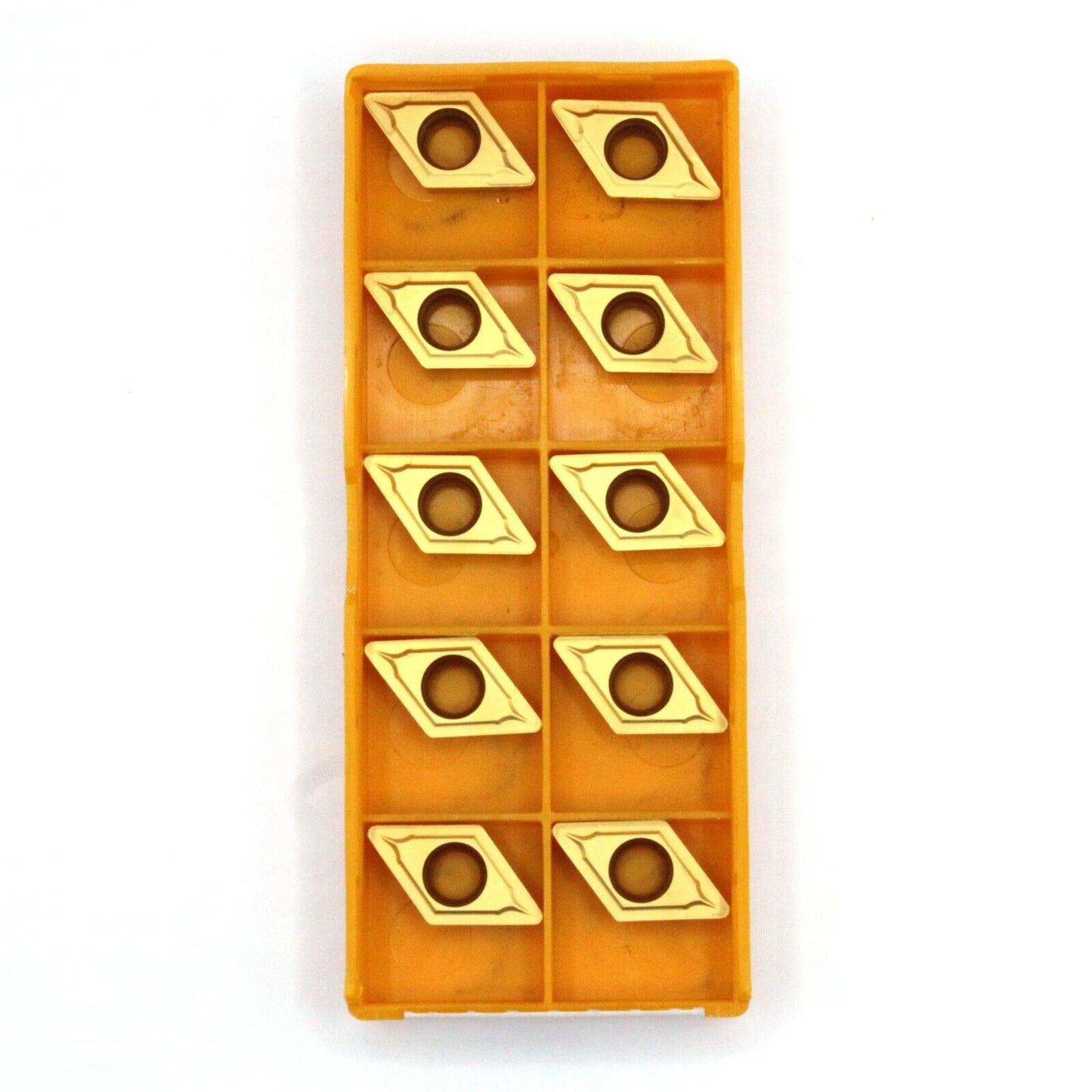

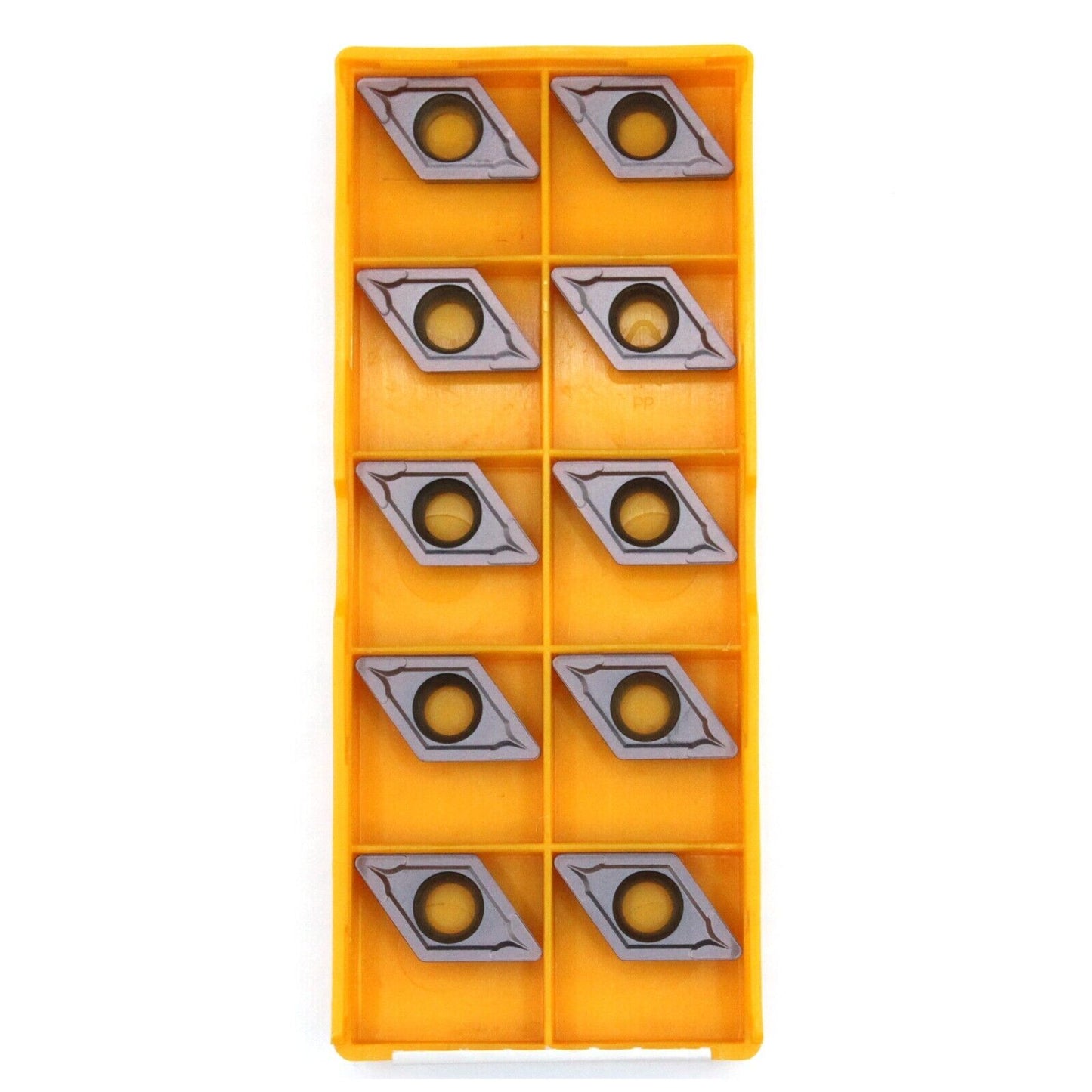

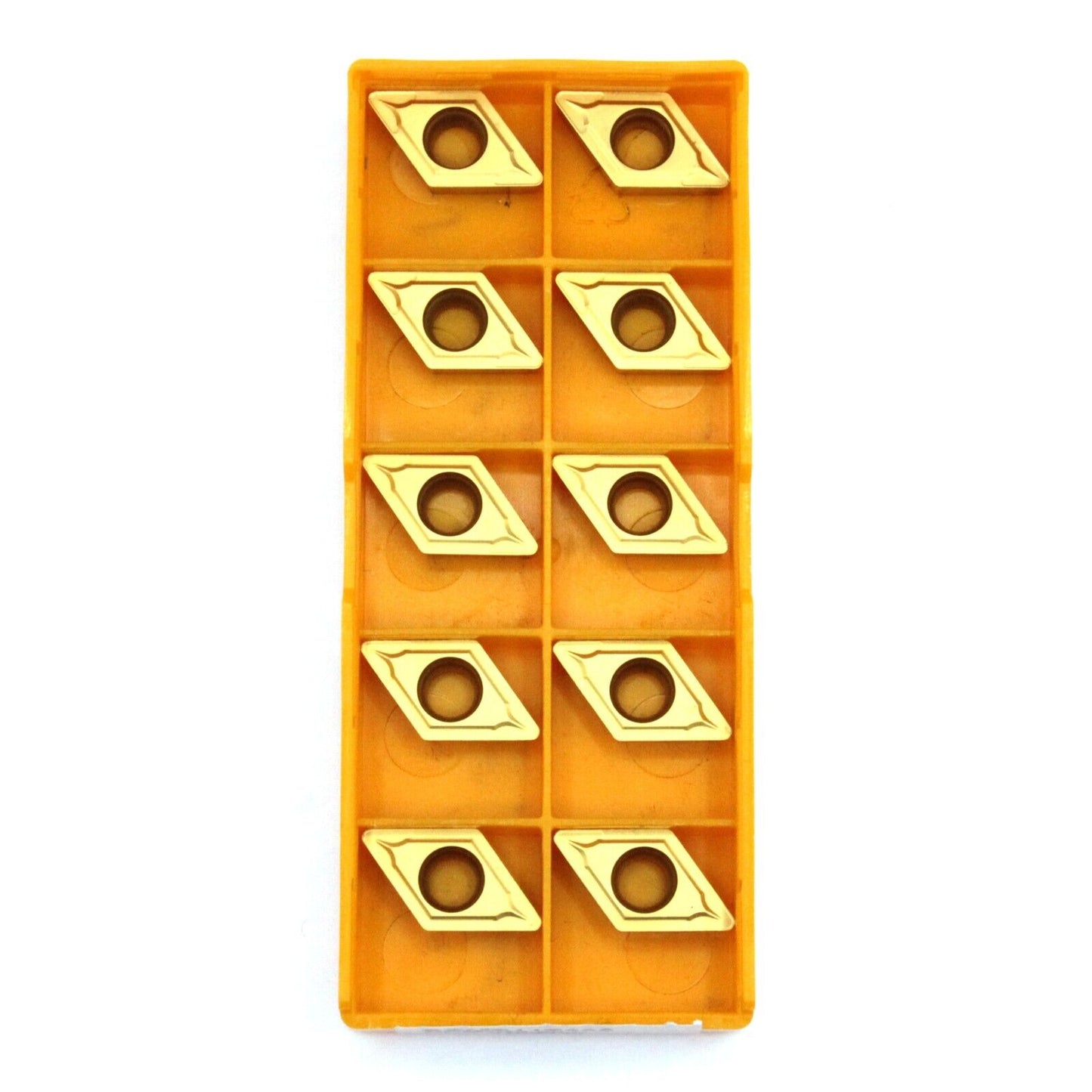

10pcs DCMT11T308 UE6020/VP15TF/US735 Carbide Insert Lathe Cutting Tool Bit CNC

£14.99 GBP

Sale Sold out

PAPER INVOICE INCLUDED IN EVERY ORDER
60-DAY FREE RETURNS FOR RISK FREE SHOPPING
FREE ROYAL MAIL TRACKED 48 SHIPPING ON ALL ORDERS

Coating UE6020 VP15TF US735

Quantity

DCMT11t304 inserts are commonly used carbide insert for turning operations. They are useful for finishing, semi-finishing, and light roughing of a variety of materials, including steel, stainless steel, cast iron, and non-ferrous metals such as aluminum and brass.

Specification	Value
ISO Code	DCMT11t304
Insert Angle	55 Degree Rhombic
Rake Angle	7 Degrees (positive)
Cutting edge length	11.6 mm
Insert thickness	3.97 mm
Corner radius	0.4 mm
Insert material	Carbide
Coating	VP15TF/UE6020/US735

Compatible Tool Holders:

SDJCR	SDJCR1212H11	SDJCR1616H11	SDJCR2020k11	SDJCR2525M11
SDJCL	SDJCL1212H11	SDJCL1616H11	SDJCL2020k11	SDJCL2525M11
SDUCR	SDUCR1212H11	SDUCR1616H11	SDUCR2020k11	SDUCR2525M11
SDACR	SDACR1212H11	SDACR1616H11	SDACR2020k11	SDACR2525M11
SDQCR	SDQCR1212H11	SDQCR1616H11	SDQCR2020k11	SDQCR2525M11
SDFCR	SDFCR1212H11	SDFCR1616H11	SDFCR2020k11	SDFCR2525M11
SDNCN	SDNCN1212H11	SDNCN1616H11	SDNCN2020k11	SDNCN2525M11

Coatings:

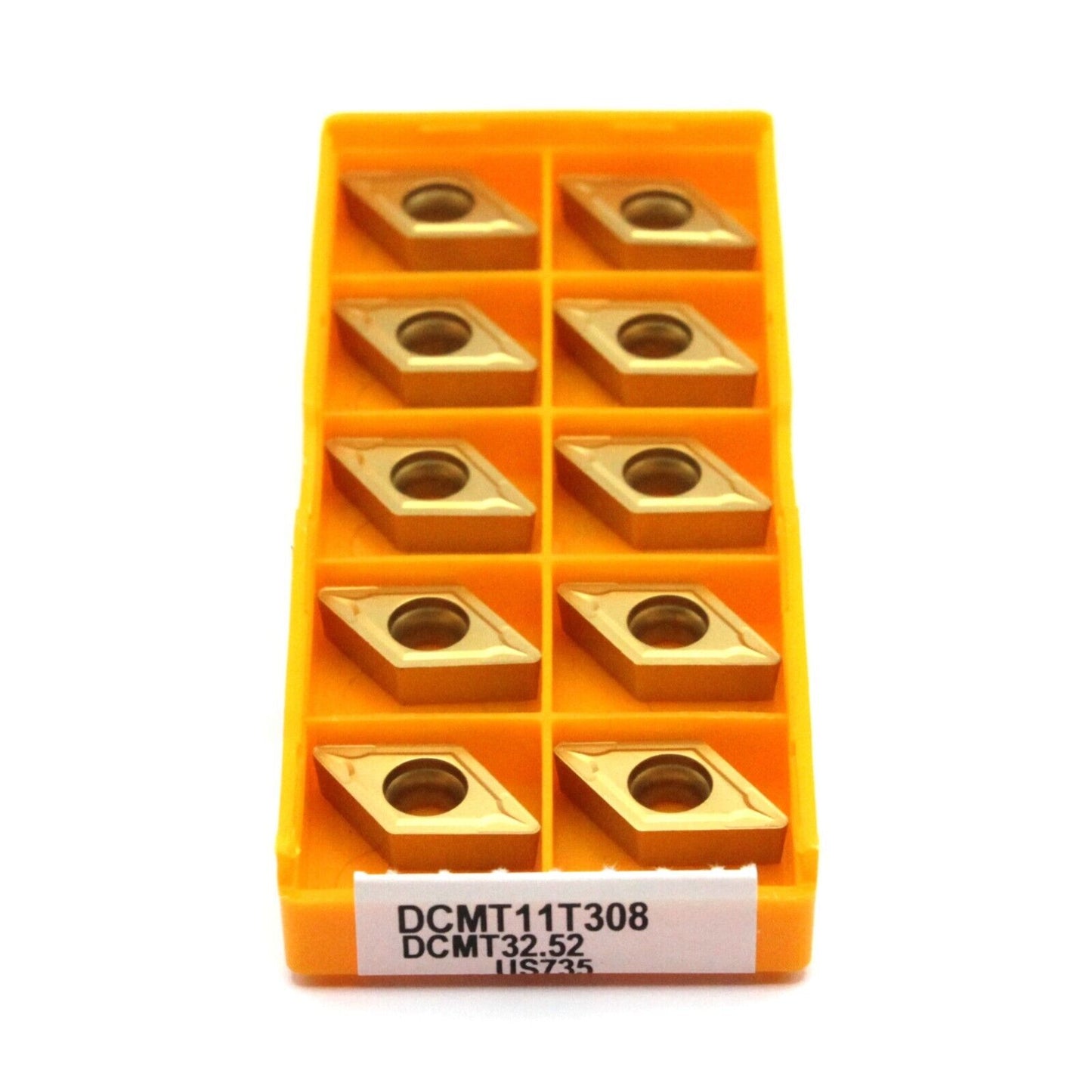

US735 - Stainless steel cutting + general purpose - moderate speed

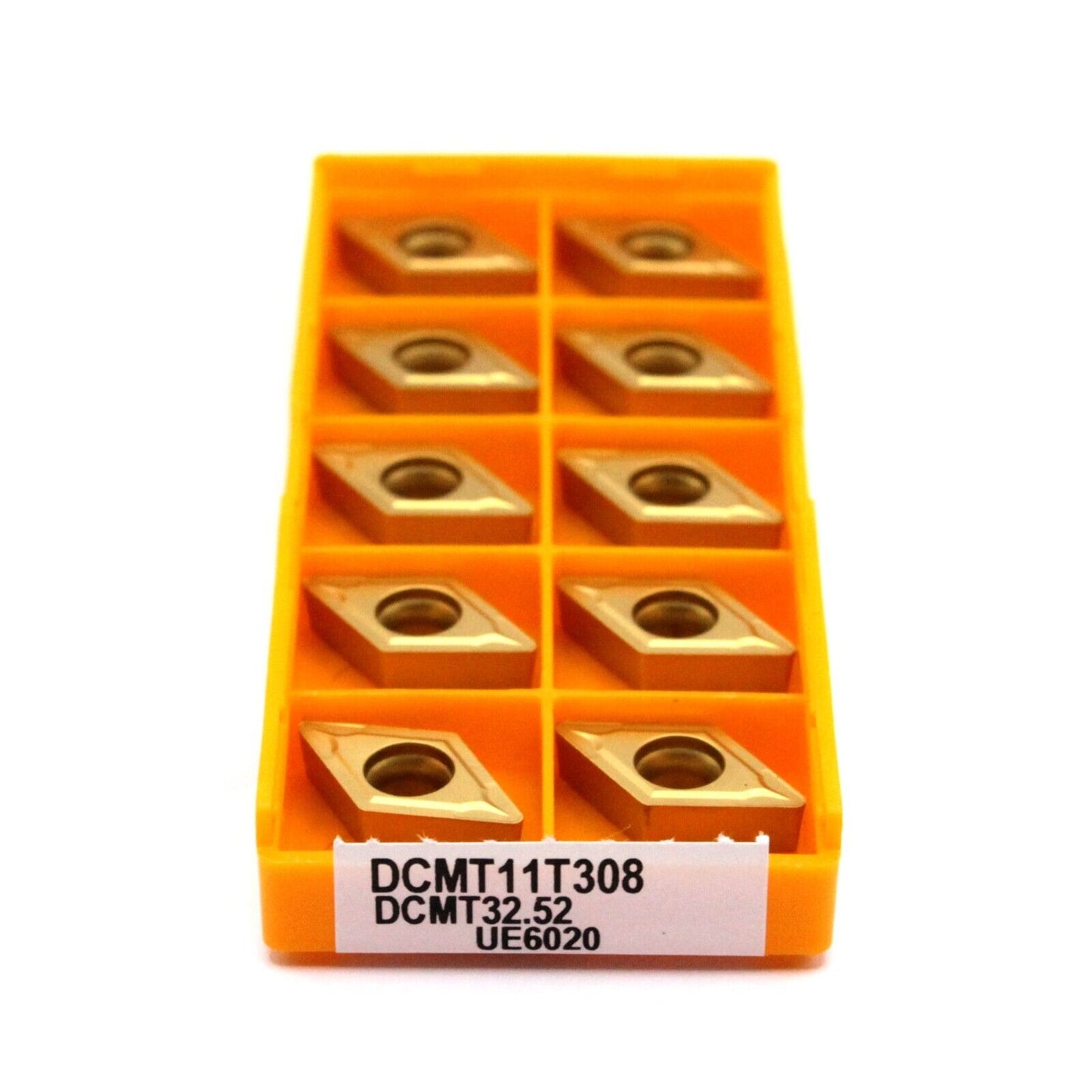

UE6020 - Carbon steel cutting + General purpose - moderate speed

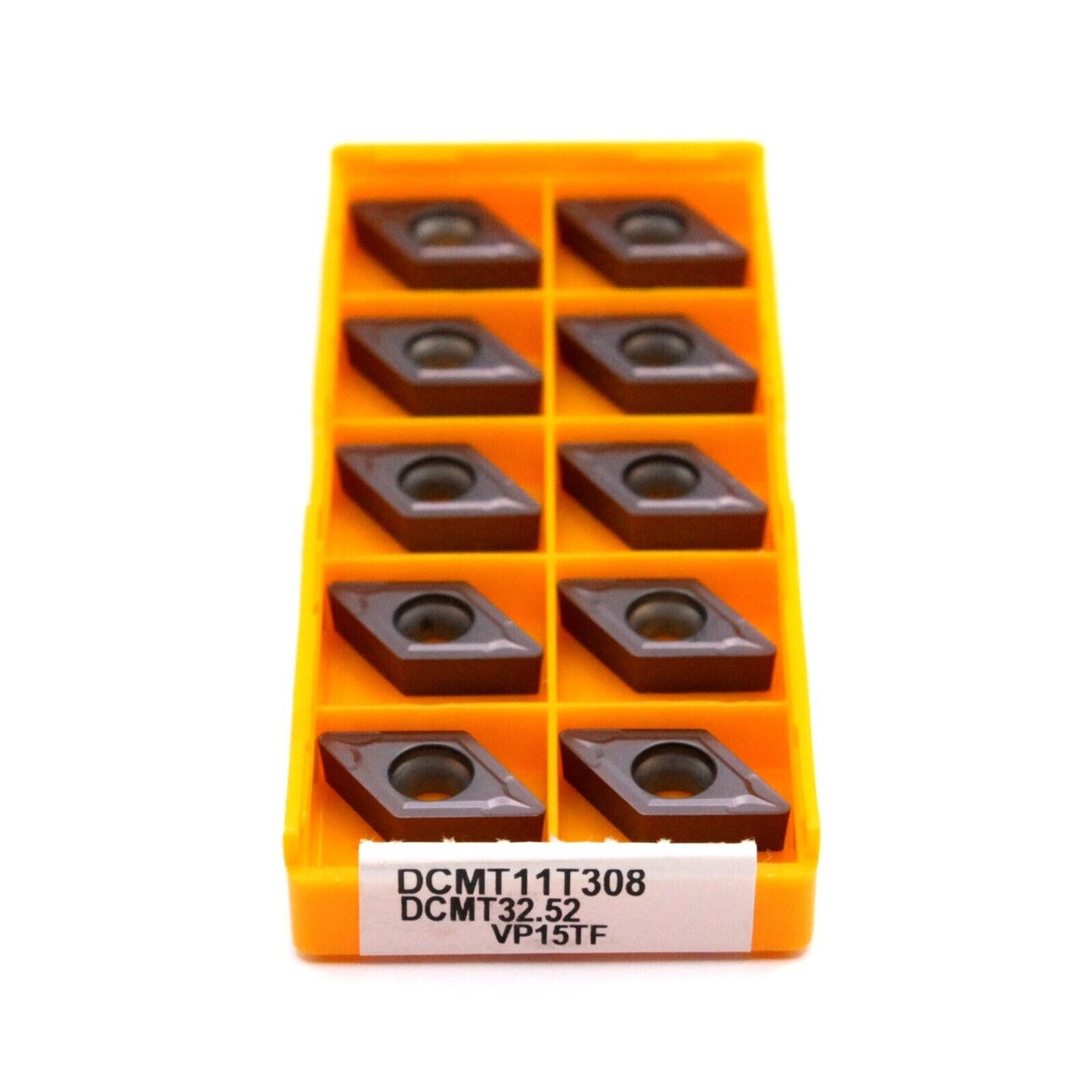

VP15TF - General Purpose + Long Lifespan - moderate speed
