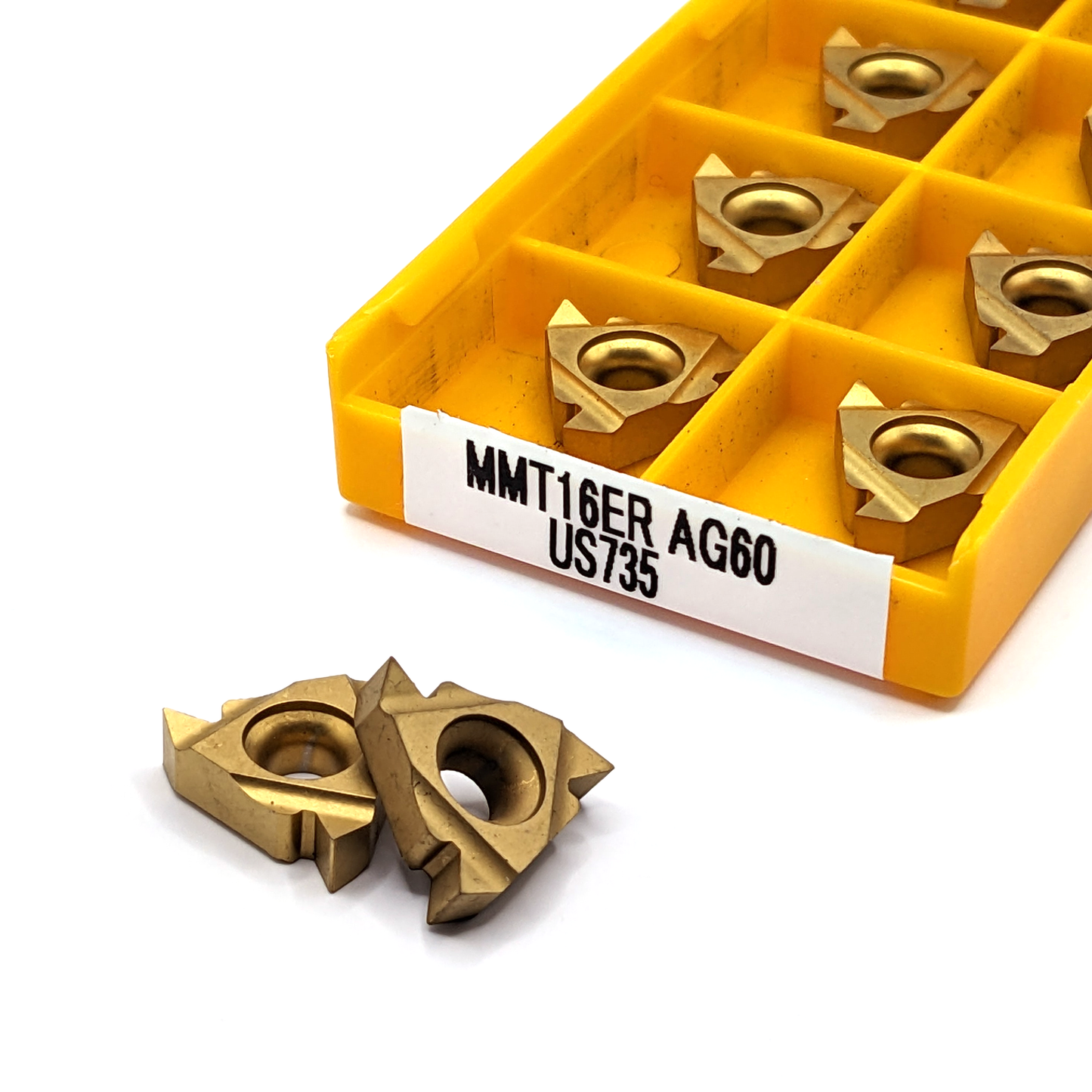

10pcs MMT 16ER AG60 US735 External Threading Carbide Lathe Insert

The MMT 16ER AG60 carbide insert features a triangular shape with a cutting edge that is 16mm in length. The AG60 designation indicates that the insert has a 60-degree angle on its cutting edge, which is ideal for turning threads. ER indicates these inserts fit toolholders with an orientation designed for external threading with a right hand direction.

These inserts are partial profile inserts, which means they can cut a wide variety of thread pitches, but the crests will not be automatically formed as in a full profile insert so the major diameter of the thread will have to be cut accordingly.

Thread Pitch : 0.5mm - 3mm / 8 - 48 TPI

Compatible Holders : SER1212H16, SER1616H16, SER2020K16
