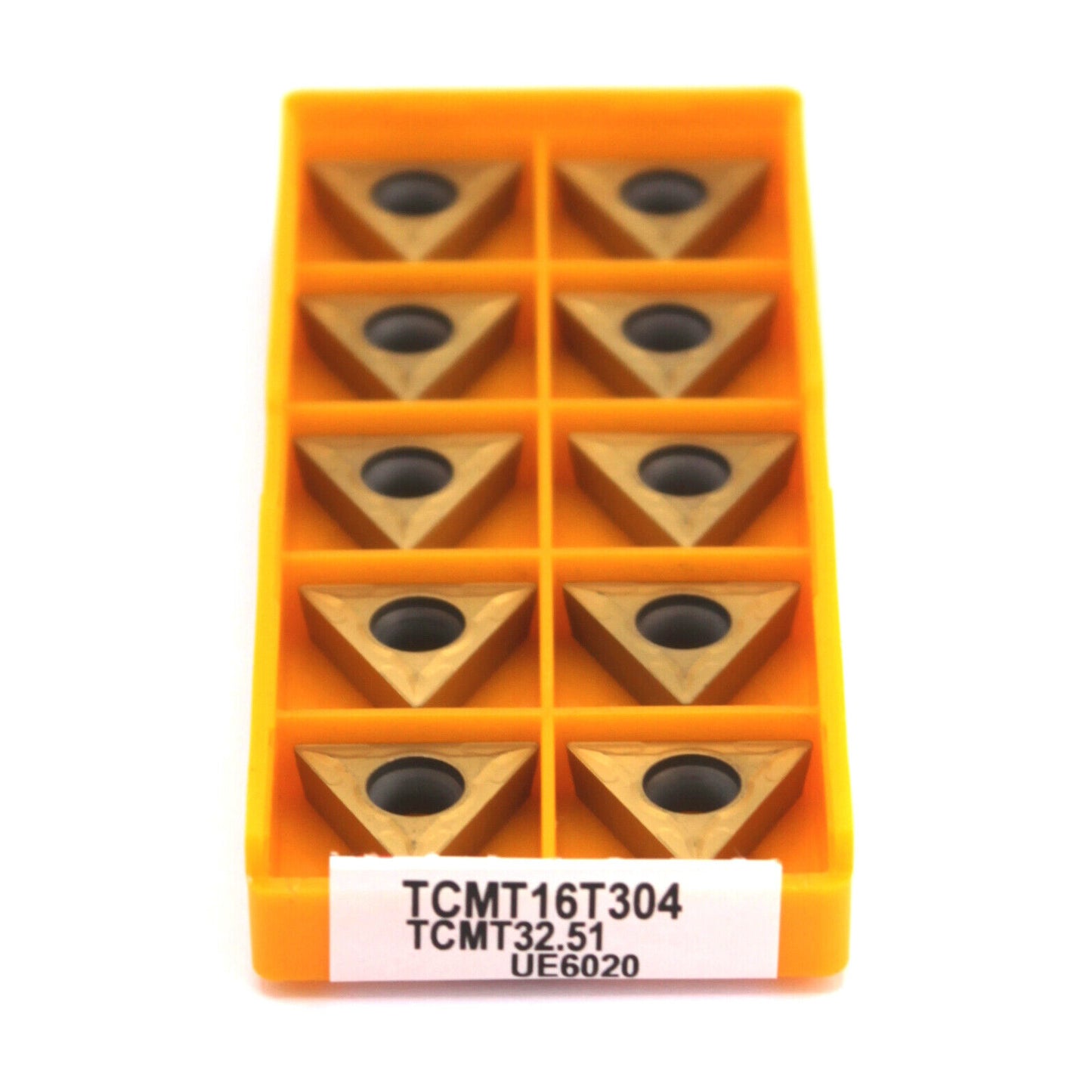

10pcs TCMT16T304 US735/UE6020/VP15TF Carbide Insert Lathe Cutting Tool Bit CNC
10pcs TCMT16T304 US735/UE6020/VP15TF Carbide Insert Lathe Cutting Tool Bit CNC
- PAPER INVOICE INCLUDED IN EVERY ORDER
- 60-DAY FREE RETURNS FOR RISK FREE SHOPPING
- FREE ROYAL MAIL TRACKED 48 SHIPPING ON ALL ORDERS
Couldn't load pickup availability
| Specification | Value |
|---|---|
| Insert Shape | TCMT (Triangular) |
| Insert Size | 16T304 |
| Material | Carbide |
| Cutting Edge Length | 16.498 mm |
| Insert Thickness | 3.97 mm |
| Corner Radius | 0.4 mm |
| Insert Angle | 60 degrees |
| Relief Angle | 7 degrees |
| Cutting Direction | Neutral |
| Fixing Hole Diameter | 4.4 mm |
| Coating | UE6020/VP15TF/US735 |
| Recommended Feed Rate | 0.1-0.2mm/rev |
| Recommended Cutting Speed | 75-125 m/min |
The TCMT16T304 Carbide Turning Insert is a high-performance cutting tool that is suitable for use in a variety of machining applications. The insert features a 60-degree insert angle and a 7-degree clearance angle major, as well as a cutting edge length of 16.498 mm, and a corner radius of 0.4 mm. The insert is neutral in hand and has a tolerance class of M.
The 0.4mm corner radius is the ideal all rounder, perfectly balanced between the precision of a finer point bit and the durability of a rounder tip.
UE6020 - recommended for interrupted and continuous cutting of Carbon and Alloy Steels at moderate speeds
US735 - recommended for stainless steel and nickel (Ni) based super alloys
VP15TF - recommended for long lifespan and heat resistance
