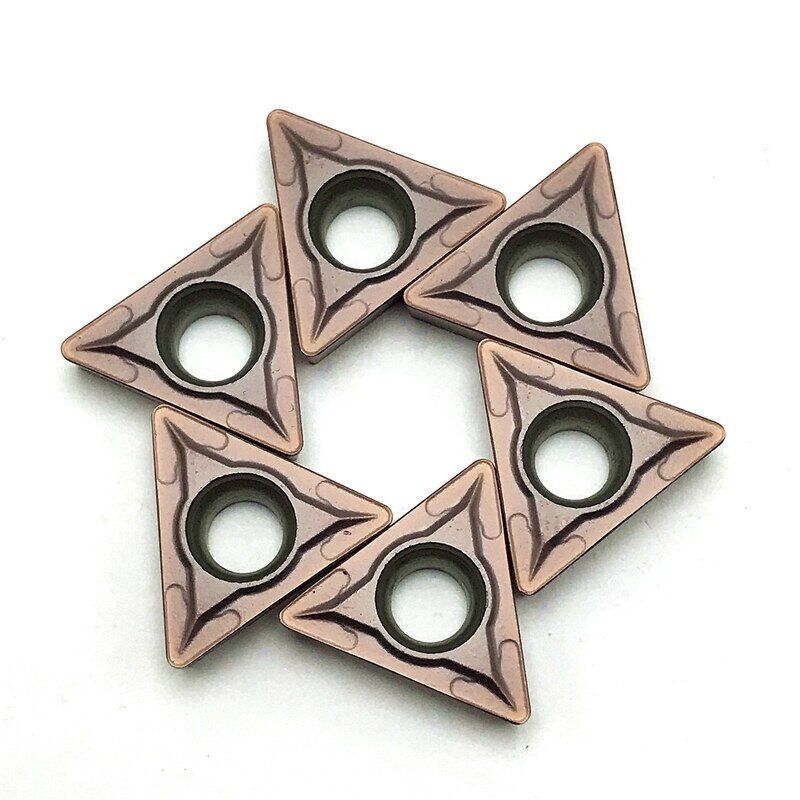

10pcs TCMT16T308 US735/UE6020/VP15TF Carbide Insert Lathe Cutting Tool Bit CNC

£14.99 GBP

Sale Sold out

PAPER INVOICE INCLUDED IN EVERY ORDER
60-DAY FREE RETURNS FOR RISK FREE SHOPPING
FREE ROYAL MAIL TRACKED 48 SHIPPING ON ALL ORDERS

Coating VP15TF UE6020 US735

Quantity

Specification	Value
Insert Shape	TCMT (Triangular)
Insert Size	16T308
Material	Carbide
Cutting Edge Length	16.498 mm
Insert Thickness	3.97 mm
Corner Radius	0.8 mm
Insert Angle	60 degrees
Relief Angle	7 degrees
Cutting Direction	Neutral
Fixing Hole Diameter	4.4 mm
Coating	UE6020/VP15TF/US735
Recommended Feed Rate	0.1-0.2mm/rev
Recommended Cutting Speed	75-125 m/min

The TCMT16T308 Carbide Turning Insert is a high-performance cutting tool that is suitable for use in a variety of machining applications. The insert features a 60-degree insert angle and a 7-degree clearance angle major, as well as a cutting edge length of 16.498 mm, and a corner radius of 0.8 mm. The insert is neutral in hand and has a tolerance class of M.

The rounded 0.8mm corner radius allows for easy cutting of rounded corners, and is more durable during interrupted cutting compared to inserts with a finer tip.

UE6020 - recommended for interrupted and continuous cutting of Carbon and Alloy Steels at moderate speeds

US735 - recommended for stainless steel and nickel (Ni) based super alloys

VP15TF - recommended for long lifespan and heat resistance
