6-12mm SCLCR06 Boring Bar Lathe Insert Toolholder

£4.99 GBP

Sale Sold out

PAPER INVOICE INCLUDED IN EVERY ORDER
60-DAY FREE RETURNS FOR RISK FREE SHOPPING
FREE ROYAL MAIL TRACKED 48 SHIPPING ON ALL ORDERS OVER £5

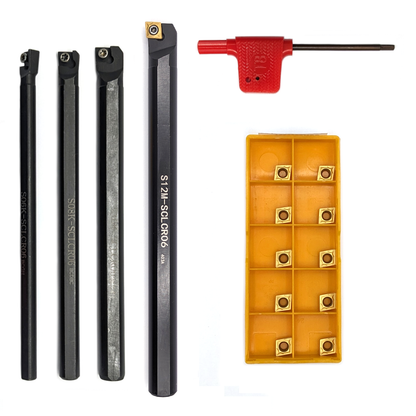

Size 6mm Shank - S06K SCLCR06 8mm Shank - S08K SCLCR06 10mm Shank - S10K SCLCR06 12mm Shank - S12M SCLCR06

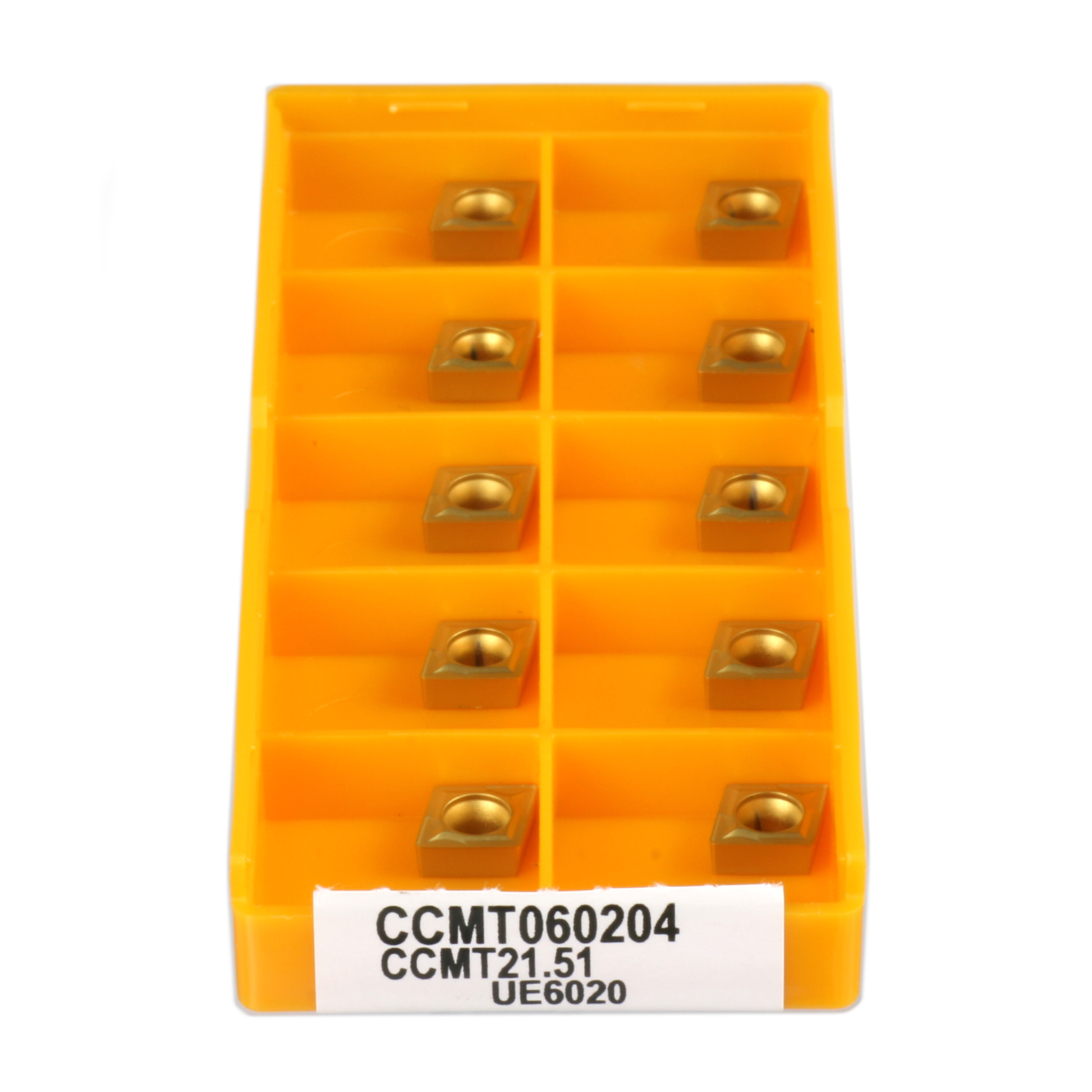

Inserts No Inserts +10pcs CCMT060204 Inserts

Quantity

These boring bar lathe tool holders are ideal for boring operations and can be used for turning and facing in a pinch, although will not be as rigid for turning operations as dedicated turning/facing toolholders like these. Compatible with any CCxT06 inserts, such as CCMT060204, CCGT060204, CCMT060202, CCGT060202, CCMT060208, CCGT060208

It's recommended to use the largest shank that will fit in your tool post while still reaching centre-line of your chuck, to maximize rigidity and minimize chatter.

Toolholder Dimensions:

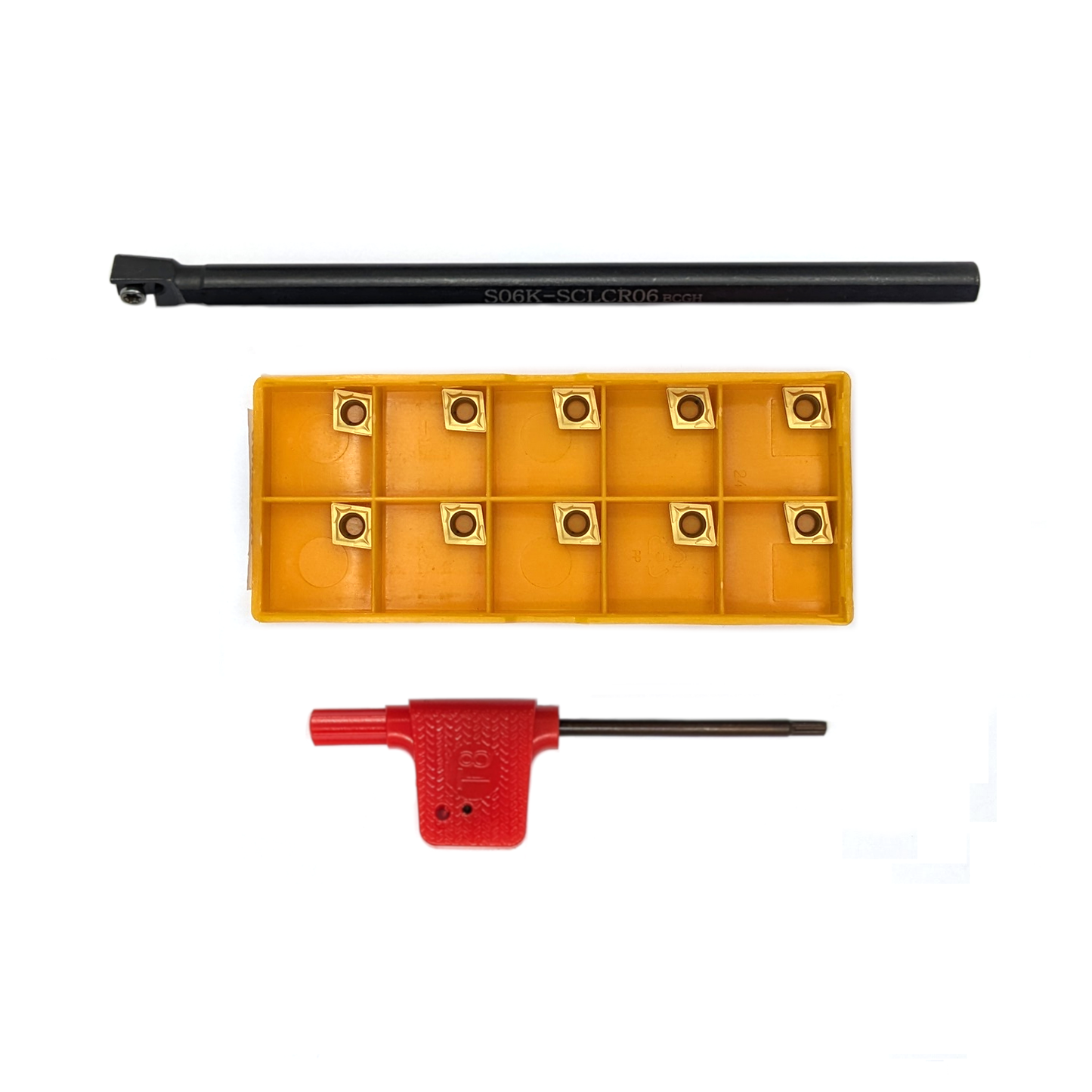

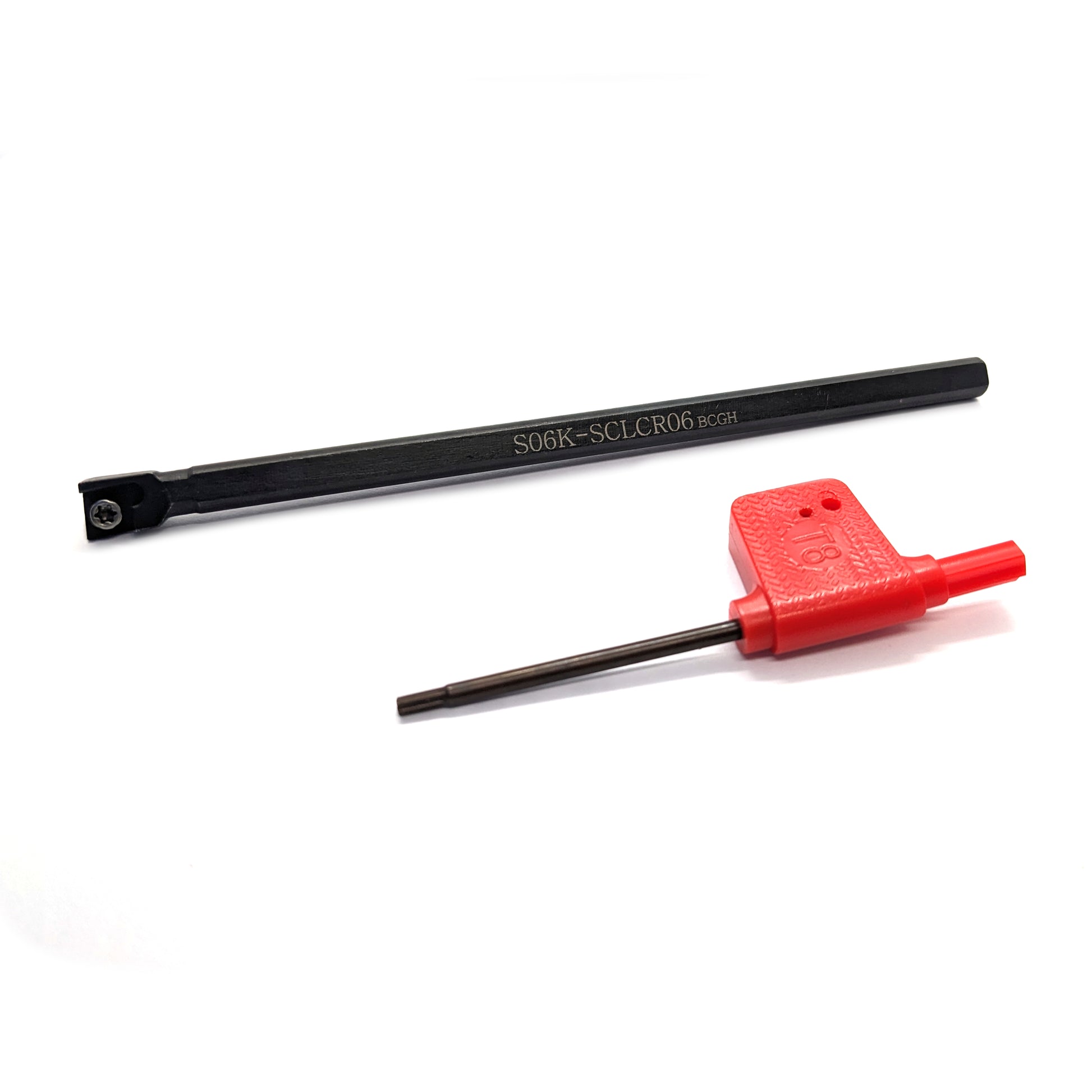

S06K SCLCR06

Shank Diameter: 6mm
Length: 125mm
Minimum Bore Diameter: 8mm

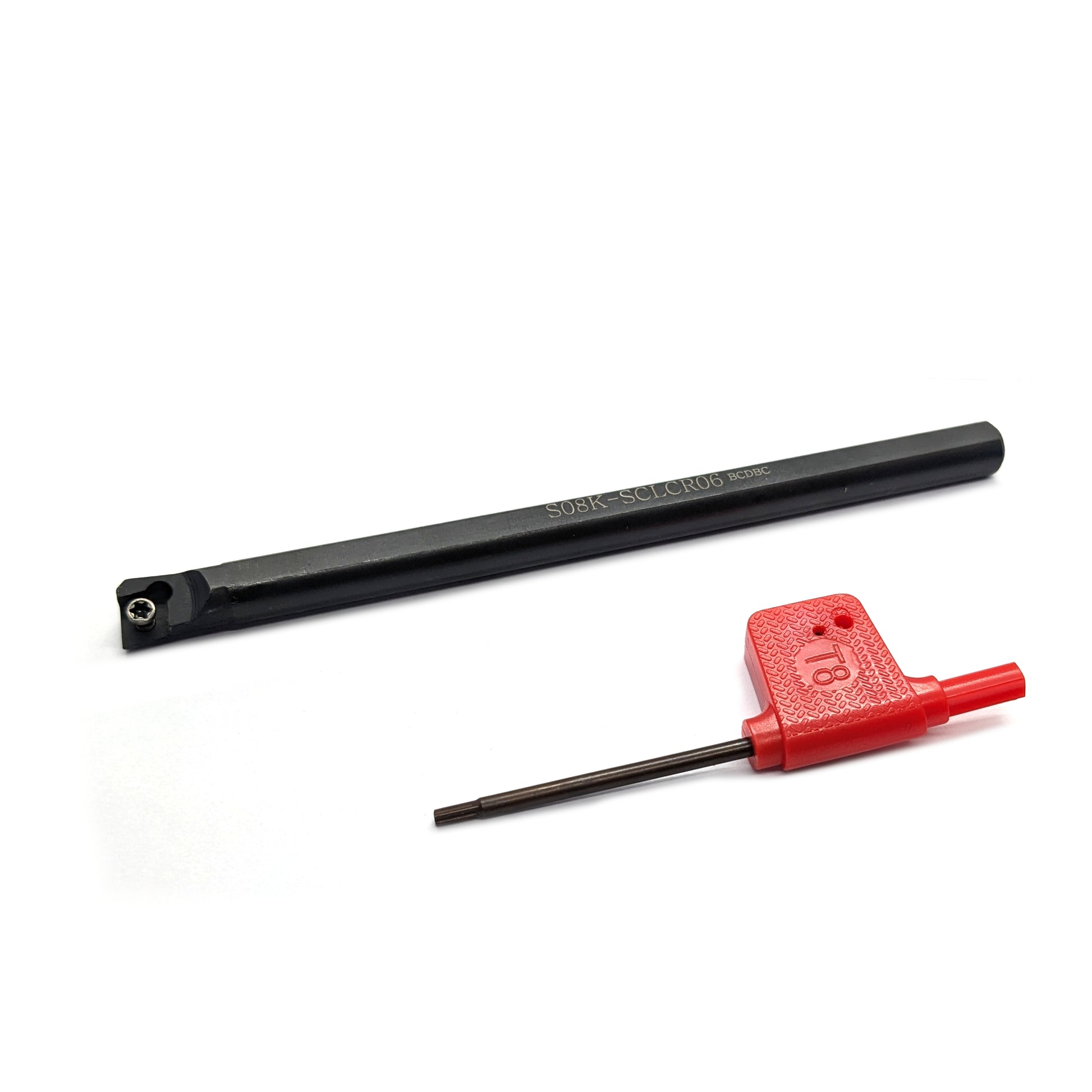

S08K SCLCR06

Shank Diameter: 8mm
Length: 125mm
Minimum Bore Diameter: 10mm

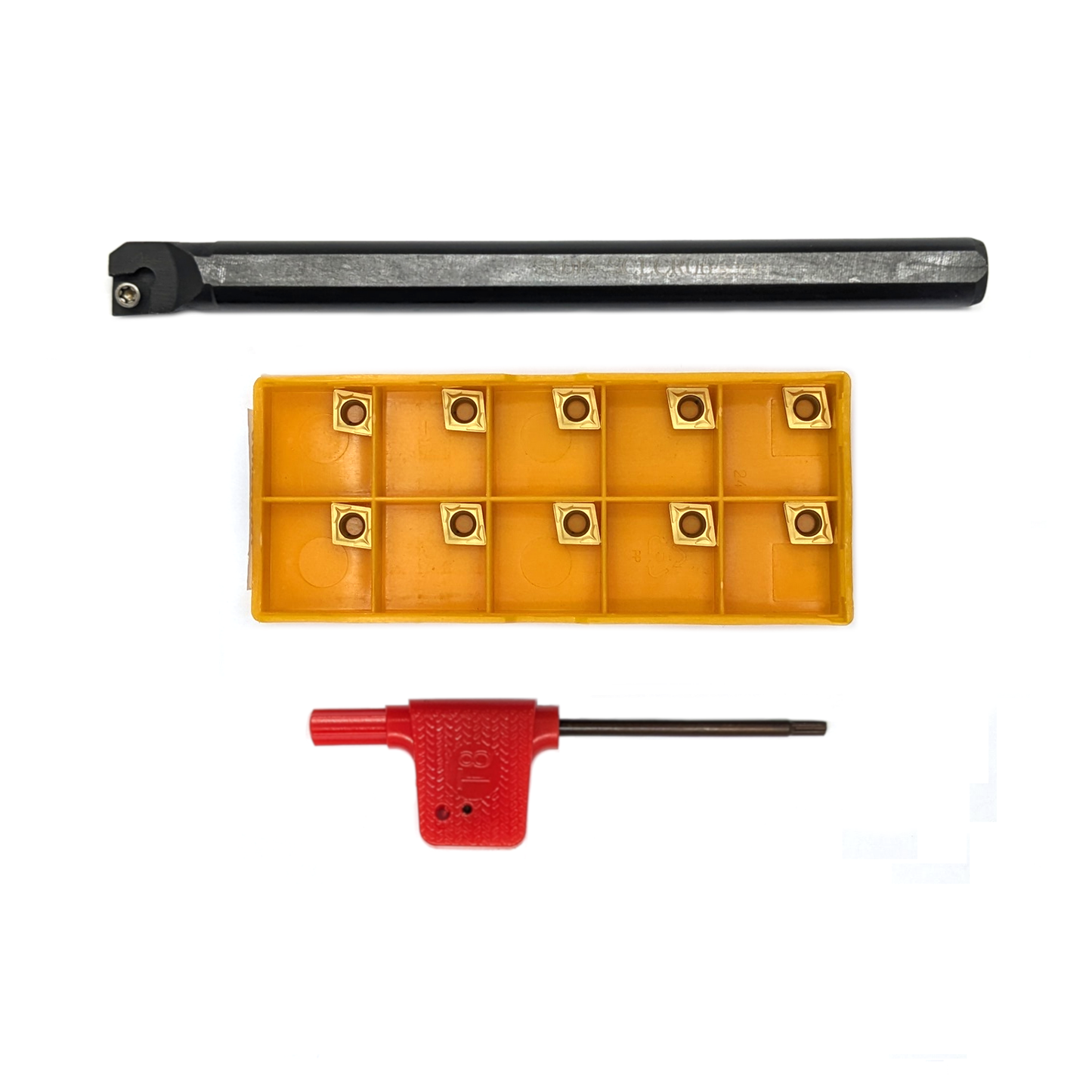

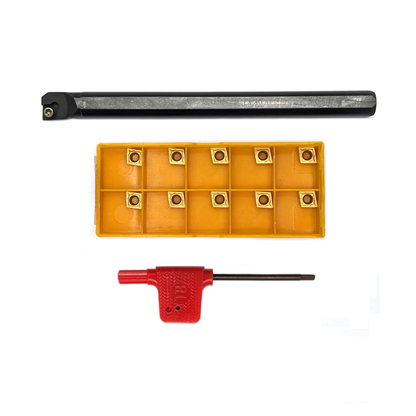

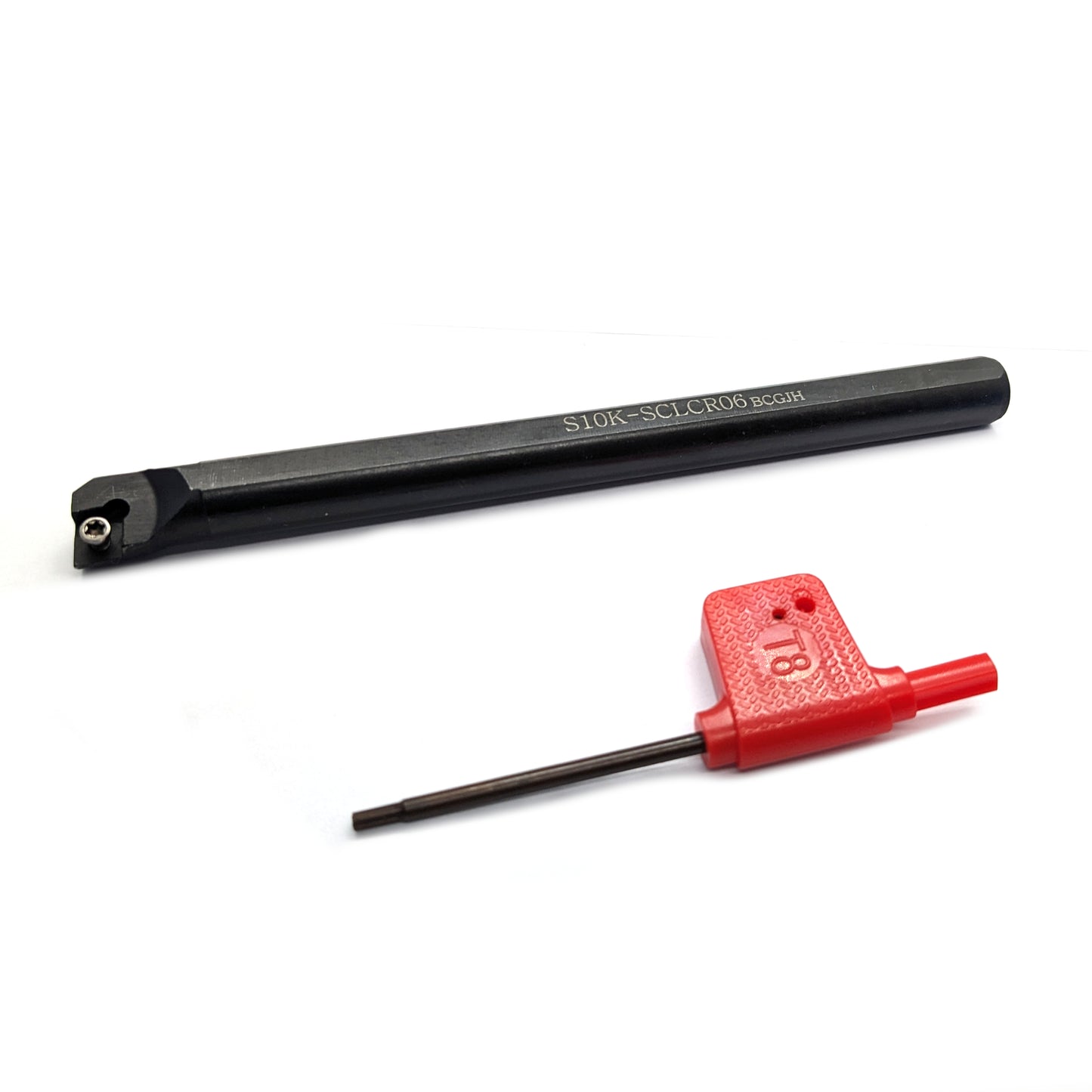

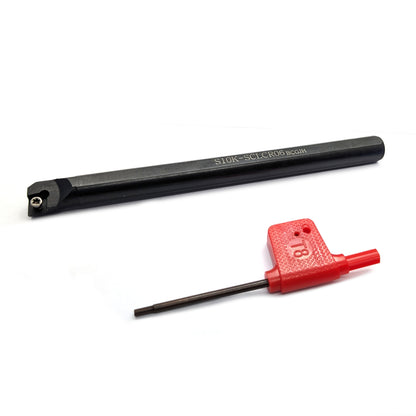

S10K SCLCR06

Shank Diameter: 10mm
Length: 125mm
Minimum Bore Diameter: 12mm

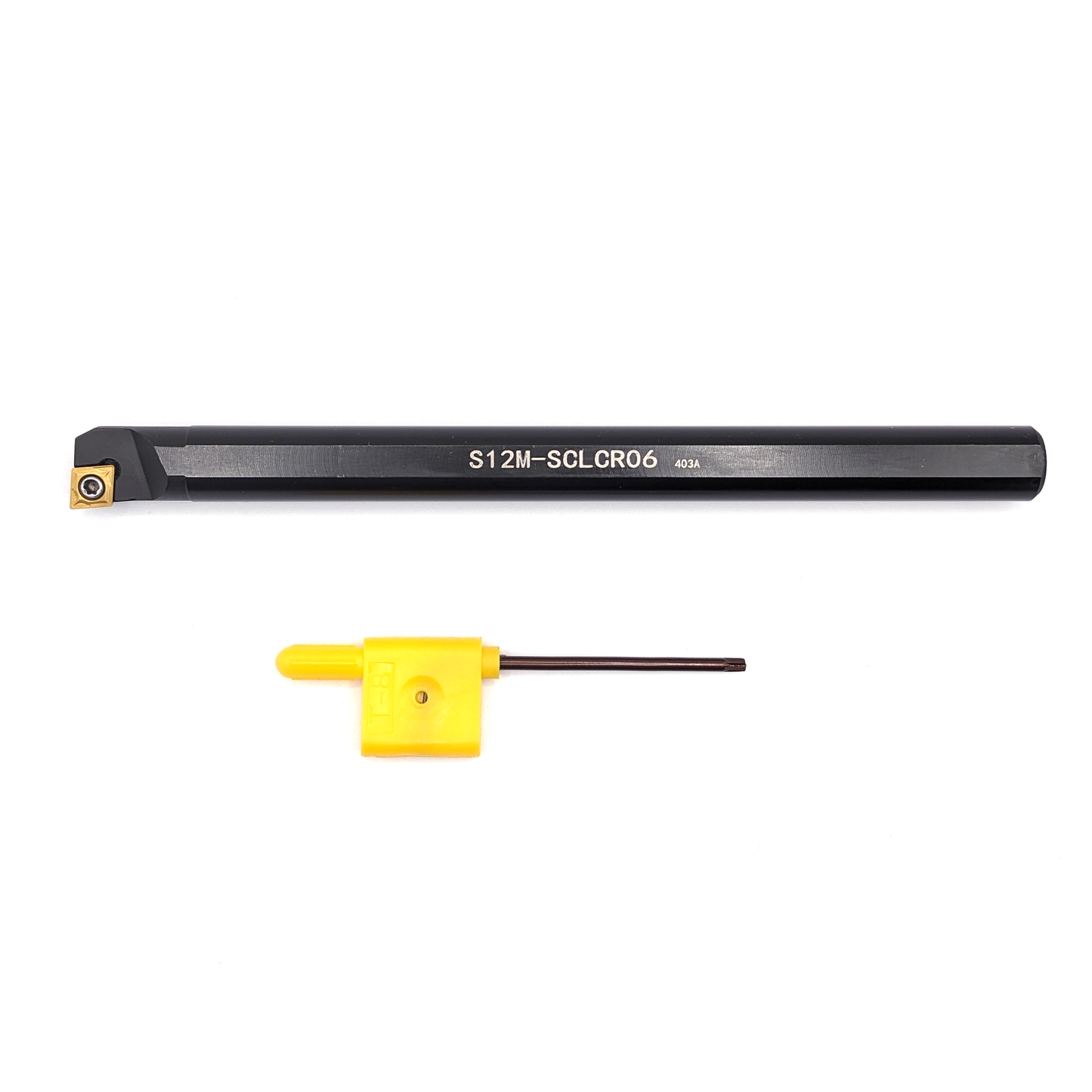

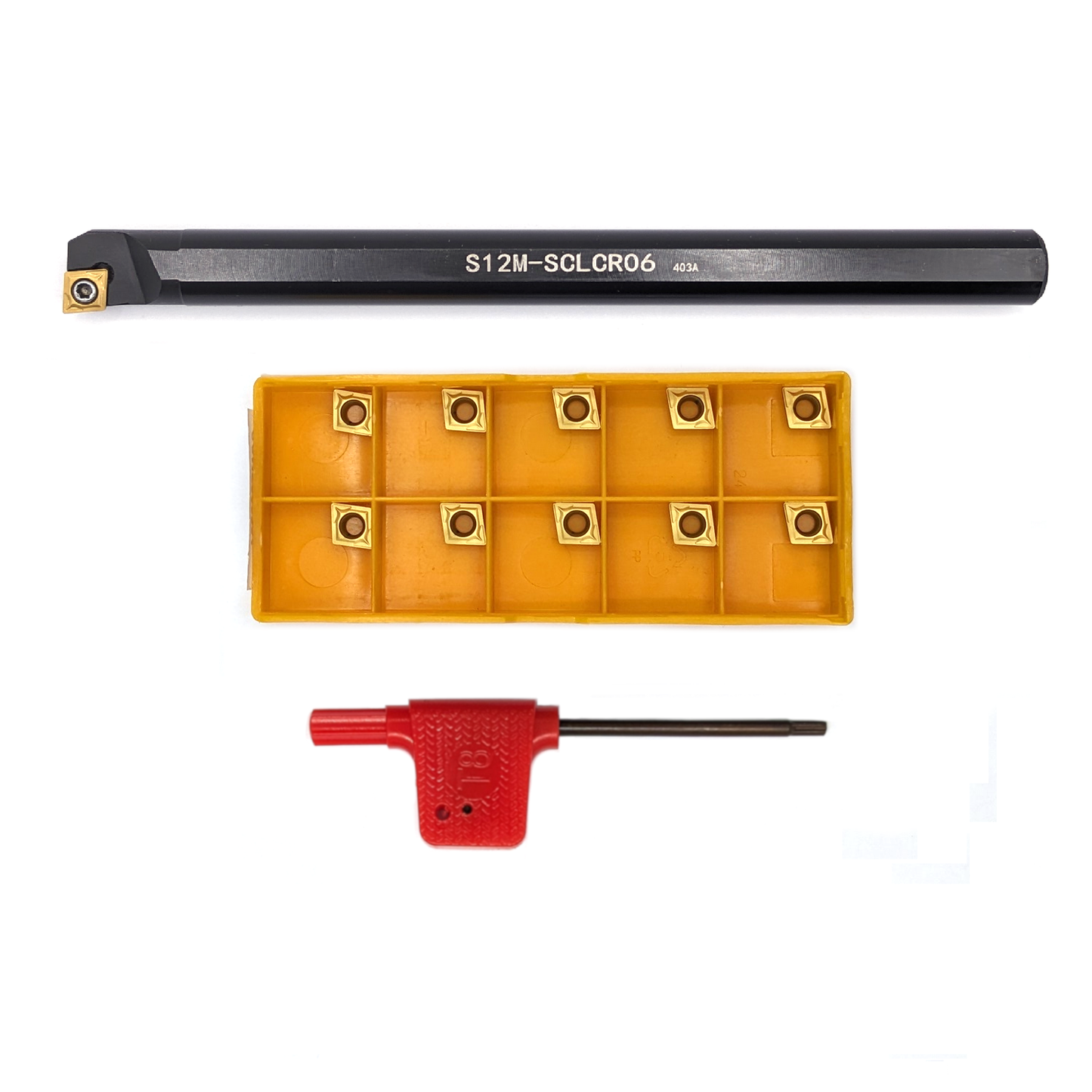

S12M SCLCR06
Shank Diameter: 12mm
Length: 150mm
Minimum Bore Diameter: 16mm
