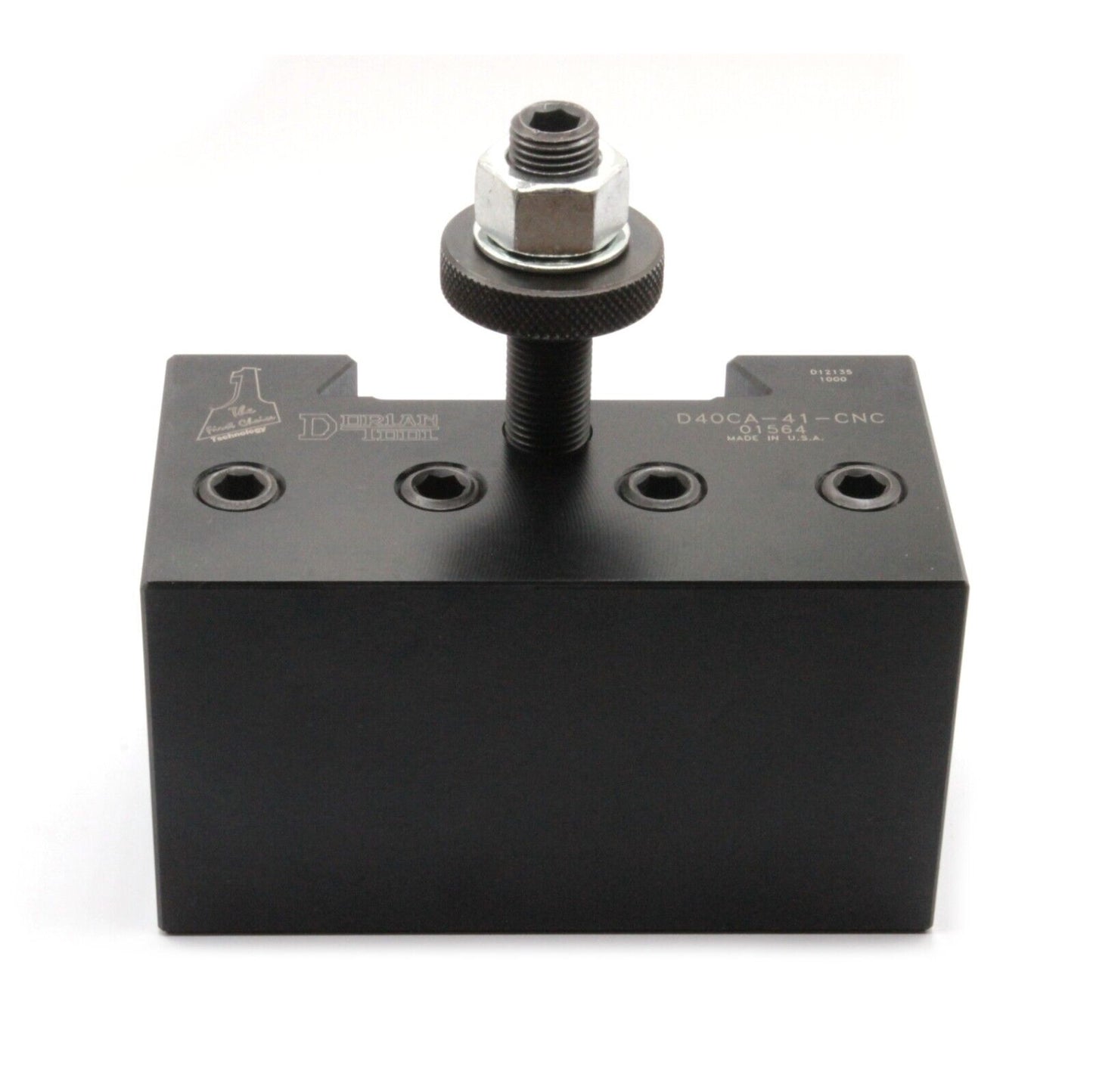

Dorian Tool 1-1/2" No. 41 XHD Boring Bar Quick Change Tool Holder D40CA-41-CNC

Dorian Tool 1-1/2" No. 41 XHD (Extra Heavy Duty) Boring Bar Quick Change Tool Holder D40CA-41-CNC

This holder is best used for holding boring bars. It has four flat-face locking-screws that automatically align the center height and rake angle of the boring bar while locking it rigidly for chatterfree machining. Flat-face locking-screws do not scar the boring bar. This holder reduces setup time by eliminating the need to indicate across the boring bar flat. Fits industry standard toolposts.

Features:

• Precision Ground and Honed Bore

• Qualified Bore for Precise Tool Alignment and Squareness

• Quick-Lock System Aligns Boring Bar Centerheight and Rake
Angle Automatically.

• Four Special Flat Machined Locking Screws for High Rigidity
Extended Overhangs without Scarring the Boring Bar

• Systems Up to 3” Capacity

• Quick Change Mounting

• High Tensile Strength Chromium- Molybdenum Alloy Steel

• Hardened & Black Finished

• CNC Precision Ground and Qualified for Accuracy and Super
Precise Tool Change Repeatability within .0001”

Applications:

• Precision Boring Applications

• Heavy Duty Boring Applications

• Heavy Duty Drilling Applications

• Deep Boring, Drilling and Threading
Applications
