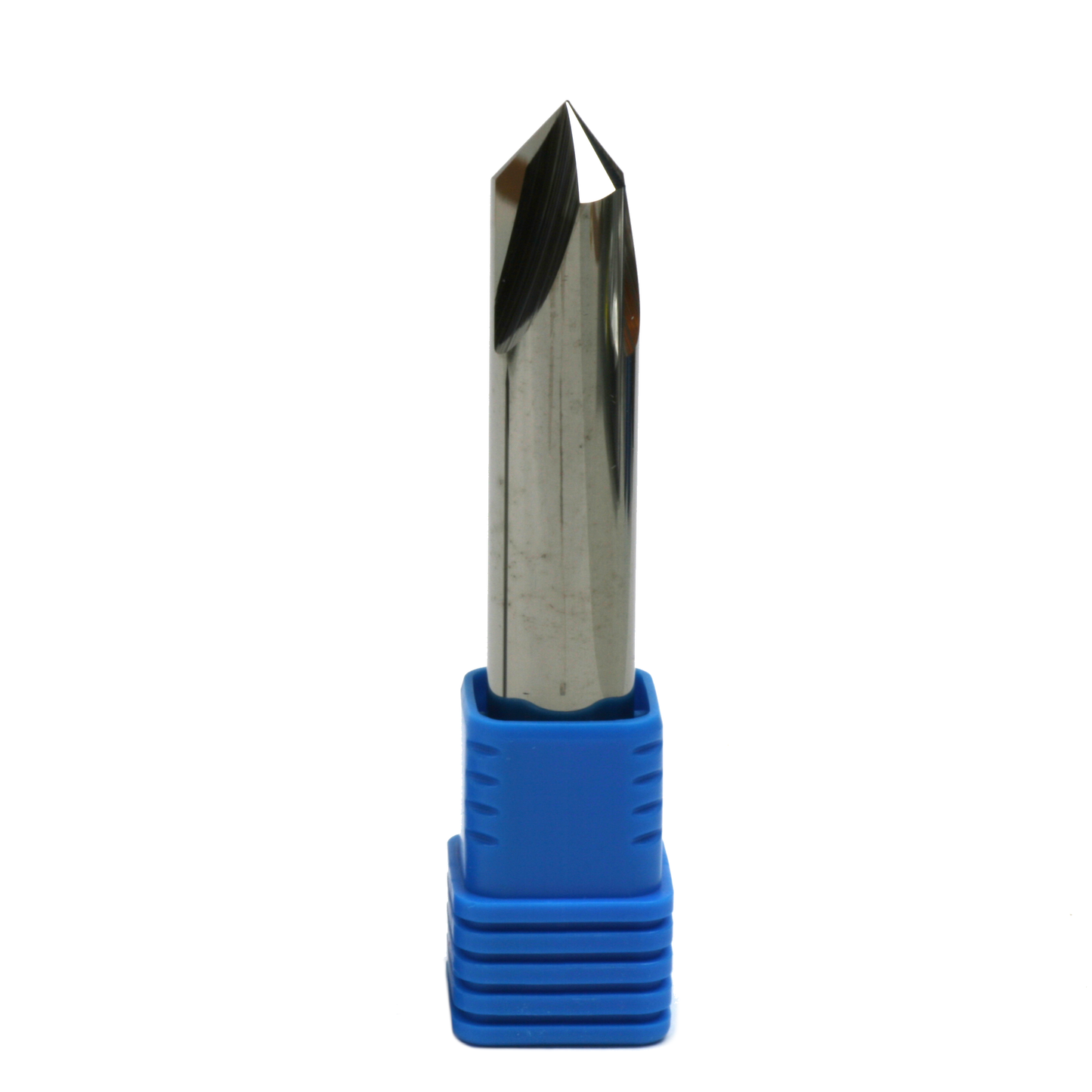

HRC45 Solid Carbide 90° Degree Chamfer Mill Milling Cutter 1mm-12mm - AlTiN

WARNING: Solid carbide chamfer mills are not recommended for manual milling, especially on low rigidity benchtop mills. Being so hard and rigid they are much less forgiving on chatter/backlash compared to HSS or an indexed carbide chamfer. For manual mills please consider HSS CHAMFER MILLS. Mills are ungashed so unsuitable for spot drilling. For spot drilling chamfers please see SOLID CARBIDE SPOT DRILLS. Geometry is optimized for steel cutting, not non-ferrous. AlTiN coating will react with aluminium so not recommended, use uncoated or coatings not including aluminium.

**SEE PHOTOS FOR SPEEDS AND FEEDS GUIDE**

Recommended Spindle Runout - 5 microns or less.
Maximum Runout - 20 microns. Tool lifespan at 20 microns is 80% lower than at 2 microns.

Chamfer end mills are used for a variety of machining operations: counter-sinking, deburring, cutting v-shaped grooves, bevels and other angled cuts.

These Chamfer End Mills are made from solid carbide, which makes them harder, stronger, and more wear-resistant than high-speed steel and cobalt steel. Additionally they are coated in Aluminium Titanium Nitride to increase heat and wear resistance for increased lifespan.

Specifications:

Cutter Material : Solid Carbide
Coating : AlTiN
Chamfering Angle : 90 Degrees
Carbide Particle Size: 0.5µm
Cuts materials up to hardness of : HRC45

Sizes given as Cutting Tip Diameter x Shank Diameter(d) x Length:

1mm x 4mm(d) x 50mm - 2 flute
1.5mm x 4mm(d) x 50mm - 2 flute
2mm x 4mm(d) x 50mm - 2 flute
3mm x 3mm(d) x 50mm - 3 flute
4mm x 4mm(d) x 50mm - 3 flute
5mm x 5mm(d) x 50mm - 3 flute
6mm x 6mm(d) x 50mm - 3 flute
8mm x 8mm(d) x 60mm - 3 flute
10mm x 10mm(d) x 75mm - 3 flute
10mm x 10mm(d) x 100mm - 3 flute
12mm x 12mm(d) x 75mm - 3 flute
12mm x 12mm(d) x 100mm - 3 flute
