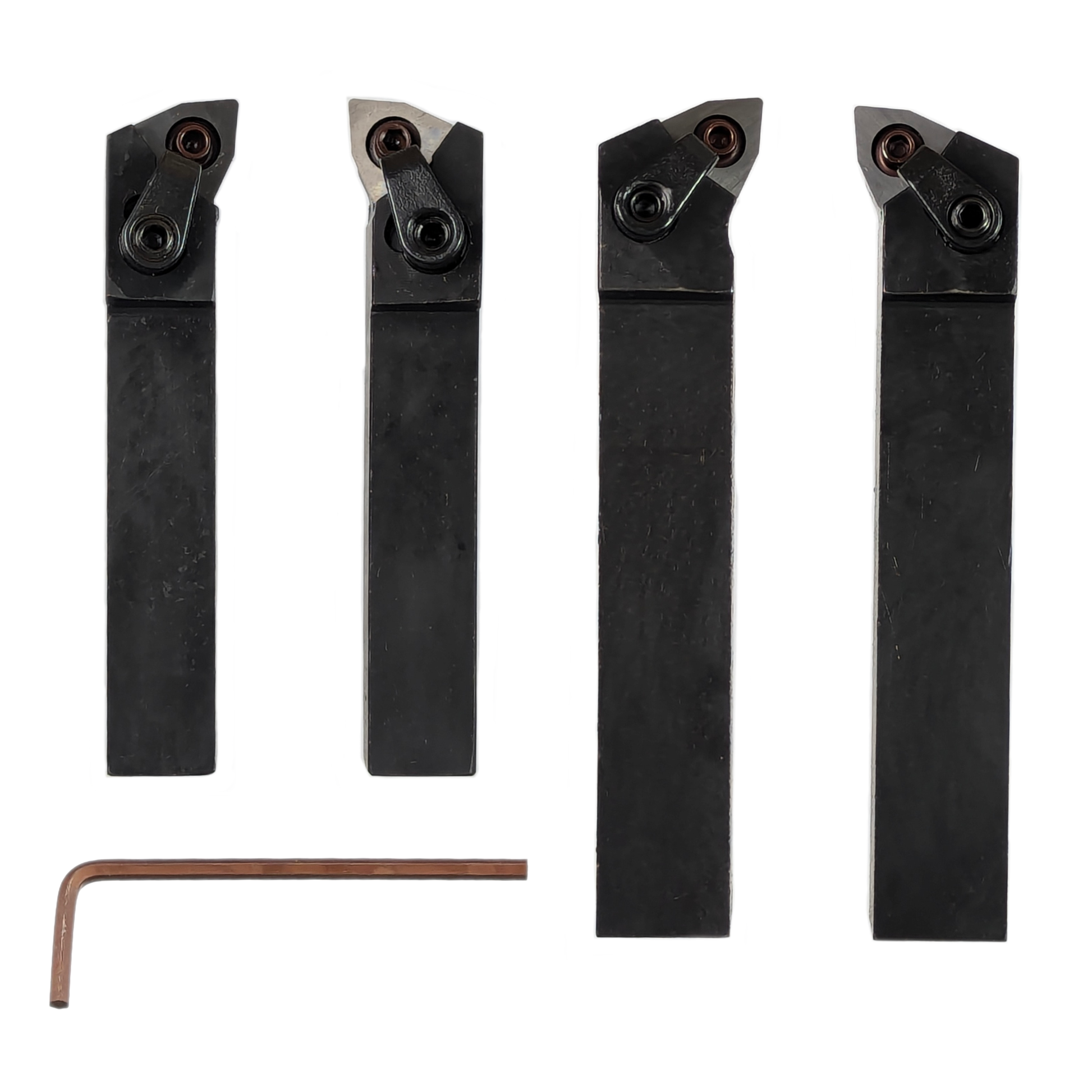

MWLNR/L 16-20mm Shank Turning Lathe Tool Holders for WNMG 0804 Inserts
MWLNR/L 16-20mm Shank Turning Lathe Tool Holders for WNMG 0804 Inserts
Regular price
£13.99 GBP
Regular price
Sale price
£13.99 GBP
Unit price
per
- PAPER INVOICE INCLUDED IN EVERY ORDER
- 180 DAY FREE RETURNS FOR RISK FREE SHOPPING
- FREE ROYAL MAIL TRACKED 48 SHIPPING ON ALL ORDERS OVER £5
Couldn't load pickup availability

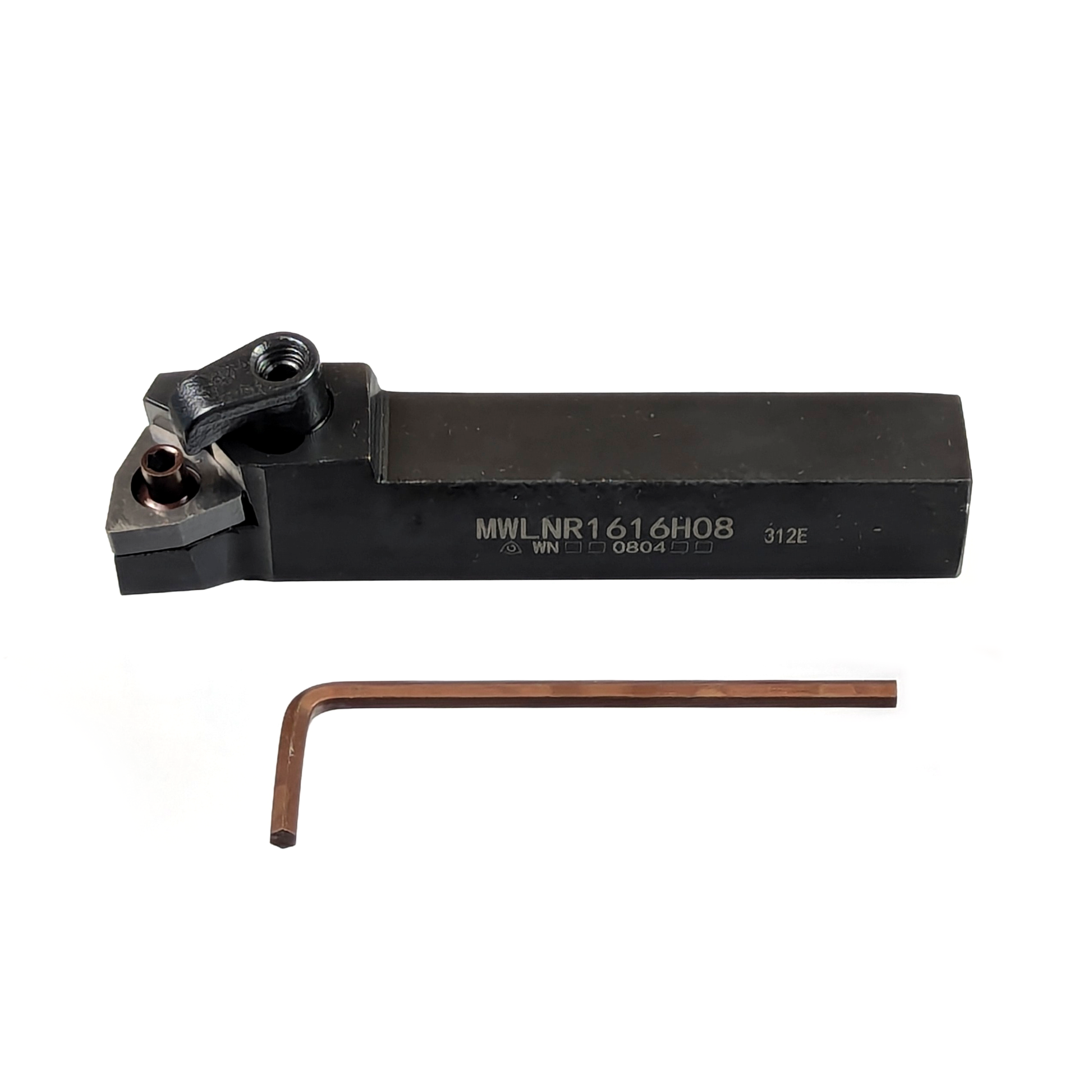

MWLNR/L1616H08
Blade: WN□□0804□□
Shank height (h): 16 mm
Shank width (b): 16 mm
Overall length (L): 100 mm
Maximum overhang (L1): 31 mm
Height to cutting tip (h1): 16 mm
Functional width (f): 25 mm
Shim: MW0804
Shim screw: ML0625
Clamp: HL1813
Clamp screw: ML0625
Wrench: L3.0
WWLNR/L2020K08
Blade: WN□□0804□□
Shank height (h): 20 mm
Shank width (b): 20 mm
Overall length (L): 125 mm
Maximum overhang (L1): 28 mm
Height to cutting tip (h1): 20 mm
Functional width (f): 25 mm
Shim: MW0804
Shim screw: ML0625
Clamp: HL1813
Clamp screw: ML0625
Wrench: L3.0
| Tool Type | Blade | Shank Height (mm) | Shank Width (mm) | Overall Length (mm) | Maximum Overhang (mm) | Height to Cutting Tip (mm) | Functional Width (mm) | Shim | Shim Screw | Clamp | Clamp Screw | Wrench |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MWLNR1616H08 - RIGHT HANDED | WN□□0804□□ | 16 | 16 | 100 | 31 | 16 | 25 | MW0804 | ML0625 | HL1813 | ML0625 | L3.0 |
|

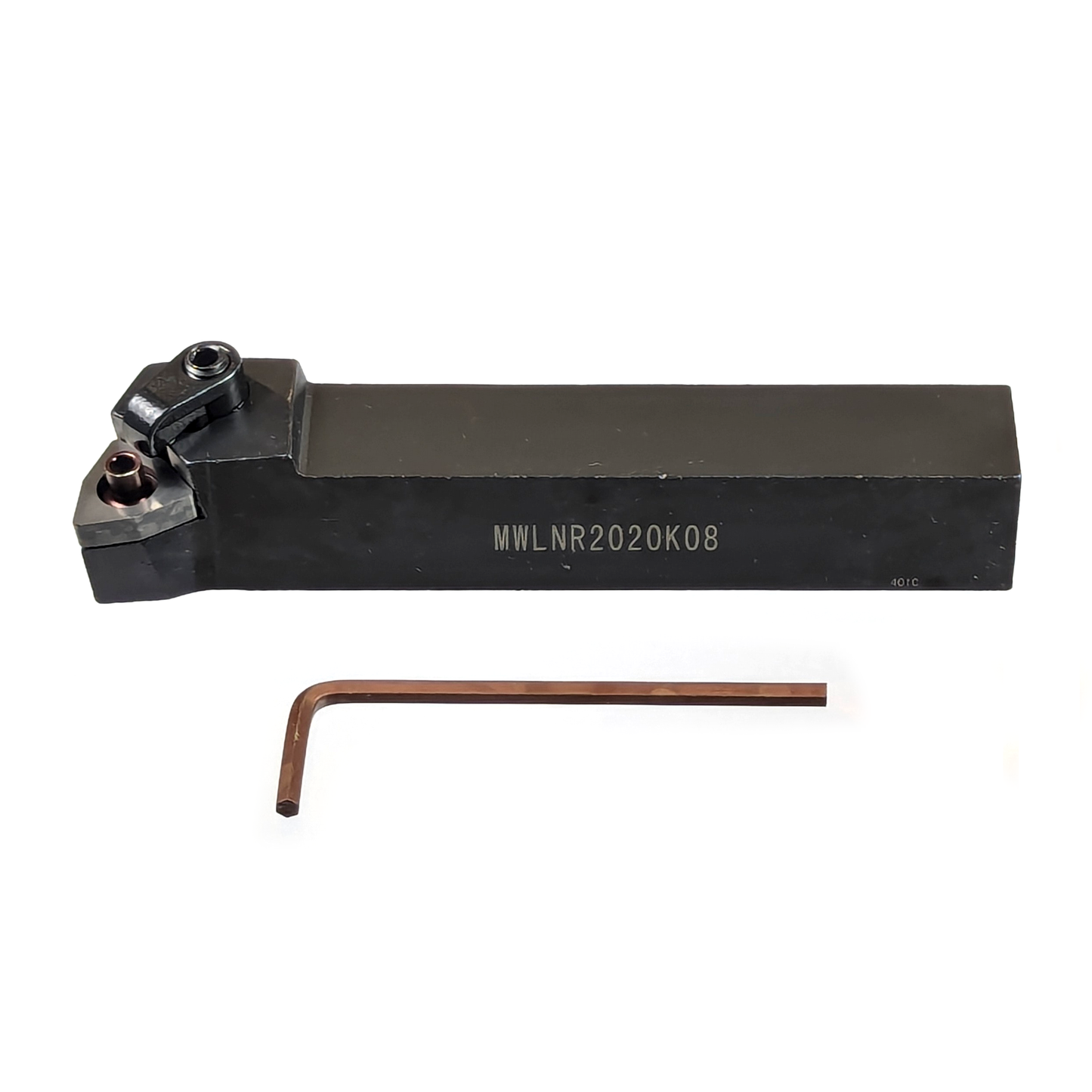

MWLNR2020K08 - RIGHT HANDED |
WN□□0804□□ | 20 | 20 | 125 | 28 | 20 | 25 | MW0804 | ML0625 | HL1813 | ML0625 | L3.0 |

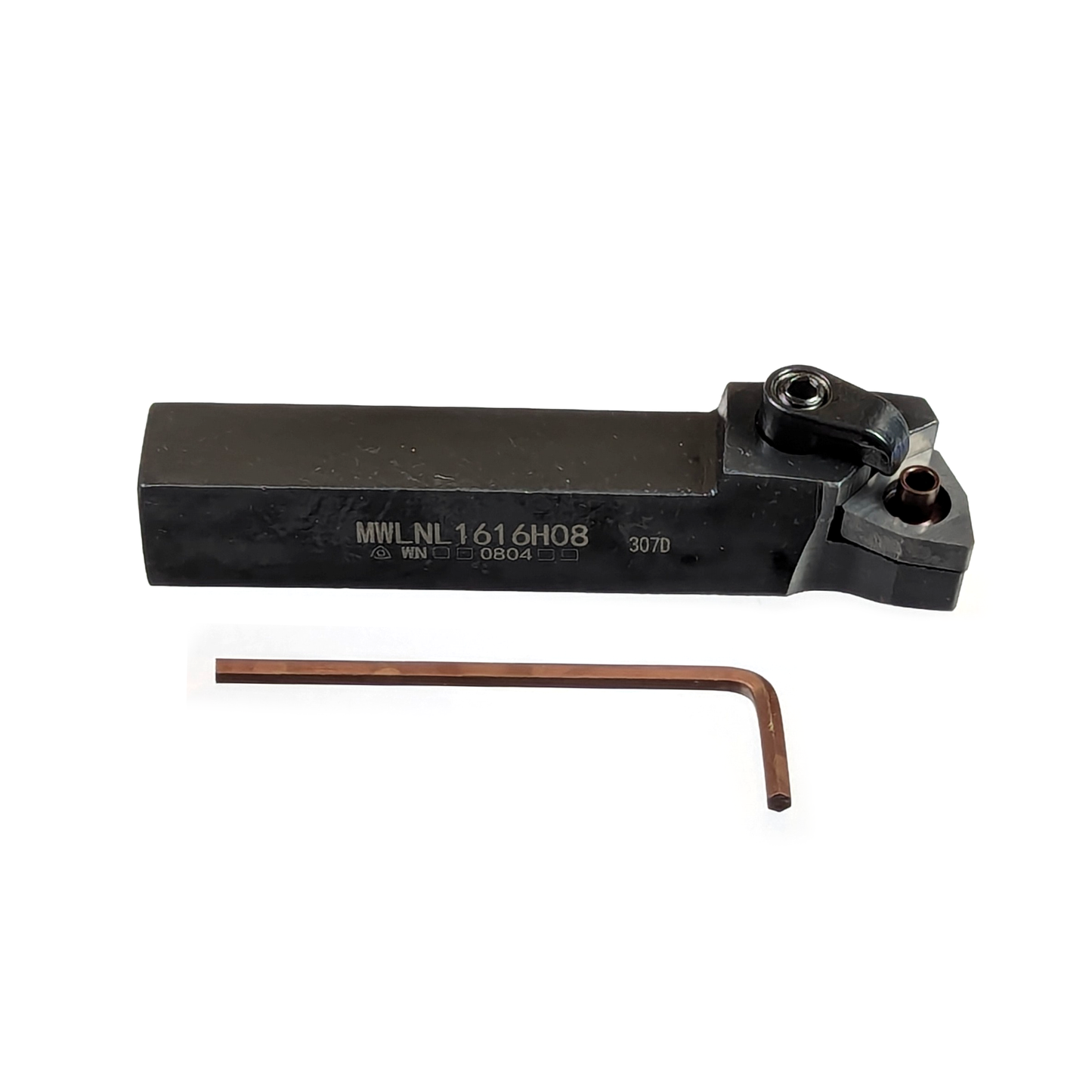

| MWLNL1616H08 - LEFT HANDED | WN□□0804□□ | 16 | 16 | 100 | 31 | 16 | 25 | MW0804 | ML0625 | HL1813 | ML0625 | L3.0 |

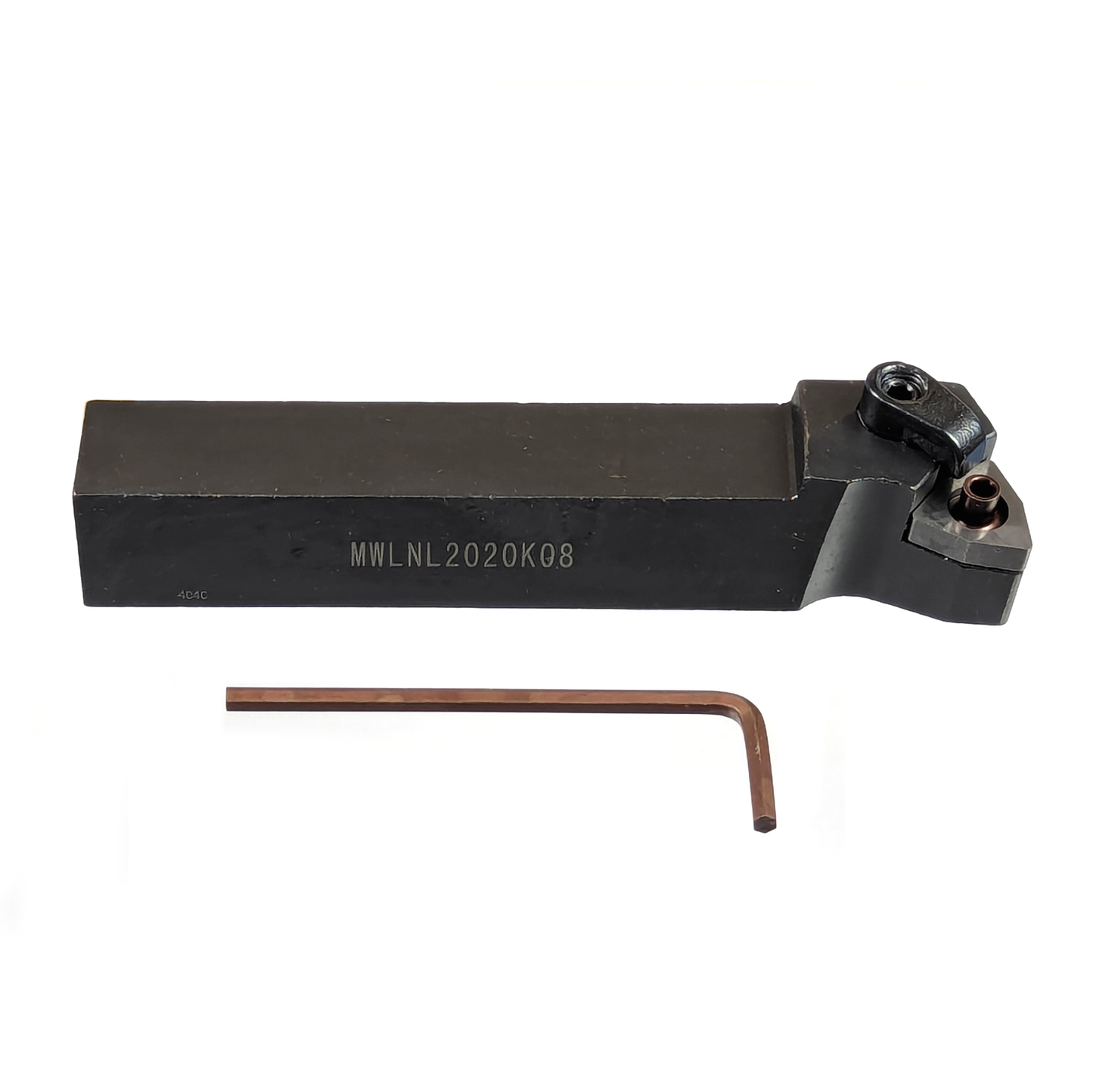

| MWLNL2020K08 - LEFT HANDED | WN□□0804□□ | 20 | 20 | 125 | 28 | 20 | 25 | MW0804 | ML0625 | HL1813 | ML0625 | L3.0 |
